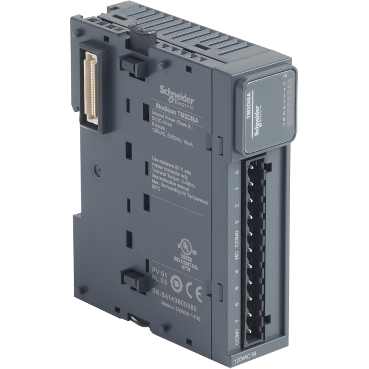

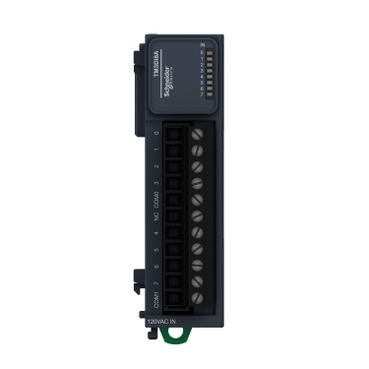

Modicon TM3, Discrete input module, 8 inputs (screw) 120 VAC

Item Number: TM3DI8A

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width27.4 mm

Height90 mm

Depth84.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480611629	-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete input module

Sustainable offer status

Green Premium product

Physical

Range compatibility

Modicon M241|Modicon M251|Modicon M221|Modicon M262

Local signalling

1 LED per channel (green) for input status

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715|top hat type TH35-7.5 rail conforming to IEC 60715| plate or panel with fixing kit

Height

90 mm

Depth

84.6 mm

Width

27.4 mm

Standards

IEC 61131-2

Product certifications

cULus|CE|UKCA|RCM|EAC|cULus HazLoc

Ambient air temperature for operation

-10...35 °C vertical installation|-10...55 °C horizontal installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)|10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Circularity profile

ENVEOLI1402009EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Discrete input number

8 for input conforming to IEC 61131-2 Type 1

Discrete input voltage

120 V

Discrete input current

7.5 mA for input

Discrete i/o number

Current consumption

0 mA at 24 V DC via bus connector (at state on)|0 mA at 24 V DC via bus connector (at state off)|70 mA at 5 V DC via bus connector (at state on)|25 mA at 5 V DC via bus connector (at state off)

Discrete input voltage type

Voltage state 1 guaranteed

79...132 V for input

Current state 1 guaranteed

2...15 mA (input)

Voltage state 0 guaranteed

0...20 V for input

Current state 0 guaranteed

<= 15 mA (input)

Input impedance

11 kOhm

Response time

25 ms (turn-on)|30 ms (turn-off)

Electrical connection

11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs

Insulation

non-insulated between inputs|between input and internal logic at 1500 V AC|between input groups at 1500 V AC

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2|4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3|3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3|1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

1 kV for I/O conforming to IEC 61000-4-4

Surge withstand

2 kV I/O common mode conforming to IEC 61000-4-5 AC

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6|3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011|radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

3.5 mm at 5-8.4 Hz on DIN rail|3 gn at 8.4-150 Hz on DIN rail|3.5 mm at 5-8.4 Hz on panel|3 gn at 8.4-150 Hz on panel

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.5 cm

Package 1 width

10.5 cm

Package 1 length

12.5 cm

Package 1 weight

230.0 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

9.88 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes
