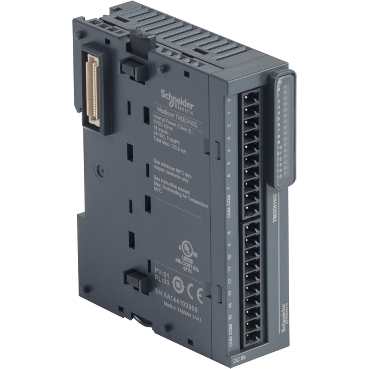

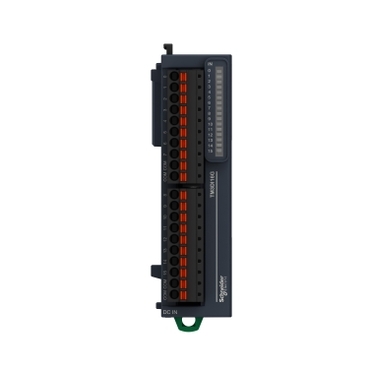

Modicon TM3, Discrete input module, 16 inputs (spring) 24 VDC

Item Number: TM3DI16G

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width27.4 mm

Height90 mm

Depth84.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480611391	-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete input module

Sustainable offer status

Green Premium product

Physical

Range compatibility

Modicon M241|Modicon M251|Modicon M221|Modicon M262

Local signalling

1 LED per channel (green) for input status

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715|top hat type TH35-7.5 rail conforming to IEC 60715| plate or panel with fixing kit

Height

90 mm

Depth

84.6 mm

Width

27.4 mm

Net weight

0.1 kg

Standards

IEC 61131-2

Product certifications

CE|cULus|UKCA|RCM|EAC|cULus HazLoc

Ambient air temperature for operation

-10...35 °C vertical installation|-10...55 °C horizontal installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)|10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1402009EN

Circularity profile

ENVEOLI1402009EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

504

Discrete input number

16 for input conforming to IEC 61131-2 type 3

Discrete input logic

sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input current

7 mA for input

Discrete i/o number

Current consumption

40 mA at 5 V DC via bus connector (at state on)|5 mA at 5 V DC via bus connector (at state off)|0 mA at 24 V DC via bus connector (at state on)|0 mA at 24 V DC via bus connector (at state off)

Discrete input voltage type

Voltage state 1 guaranteed

15...28.8 V for input

Current state 1 guaranteed

>= 2.5 mA (input)

Voltage state 0 guaranteed

0...5 V for input

Current state 0 guaranteed

<= 1 mA (input)

Input impedance

3.4 kOhm

Response time

4 ms (turn-on)|4 ms (turn-off)

Electrical connection

10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs

Maximum cable distance between devices

unshielded cable: <50 m for regular input

Insulation

between input and internal logic at 500 V AC|non-insulated between inputs

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2|4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3|3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3|1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

1 kV for I/O conforming to IEC 61000-4-4

Surge withstand

1 kV I/O common mode conforming to IEC 61000-4-5 DC

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6|3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011|radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

3.5 mm at 5-8.4 Hz on DIN rail|3 gn at 8.4-150 Hz on DIN rail|3.5 mm at 5-8.4 Hz on panel|3 gn at 8.4-150 Hz on panel

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.0 cm

Package 1 width

13.0 cm

Package 1 length

11.0 cm

Package 1 weight

199.0 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30 cm

Package 2 width

40 cm

Package 2 length

60 cm

Package 2 weight

9.124 kg

Unit type of package 3

P12

Number of units in package 3

504

Package 3 height

105 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

125 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes
