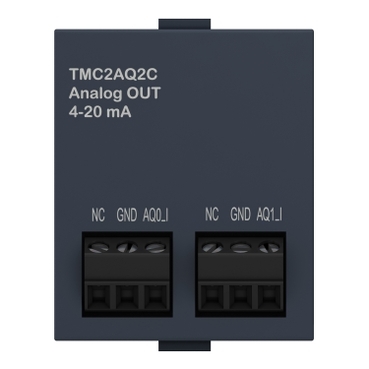

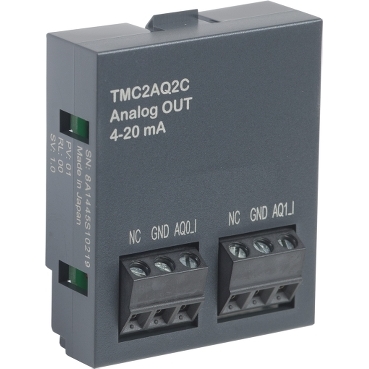

Modicon M221 Analogue output cartridge

Item Number: TMC2AQ2C

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For TMC2AQ2C

Download

Product Dimensions

Width35 mm

Height41 mm

Depth15 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480649097	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480649097	-

Specifications

Design

Range of product

Modicon M221

Product or component type

analogue output cartridge

Product compatibility

Modicon M221C

Physical

Load type

resistive

Type of cable

twisted shielded pairs cable

Height

41 mm

Depth

15 mm

Width

35 mm

Net weight

0.015 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1403017EN

Circularity profile

ENVEOLI1403017EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

2400

Packaging made with recycled cardboard

Packaging without single use plastic

Yes

Package 2 bare product quantity

Package 1 bare product quantity

Analogue output number

Analogue output type

current: 4...20 mA

Analogue output resolution

12 bits

Lsb value

3.91 µA 4...20 mA current

Load impedance ohmic

<= 500 Ohm

Conversion time

20 ms

Stabilisation time

40 ms

Absolute accuracy error

+/- 1 % of full scale
+/- 0.3 % of full scale at 25 °C

Temperature drift

+/- 0.02 %FS/°C

Repeat accuracy

+/- 0.4 %FS

Non-linearity

+/- 0.01 %FS

Cross talk

<= 1 LSB

Electrical connection

3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs

Maximum cable distance between devices

twisted shielded pairs cable: <30 m for output

Insulation

non-insulated between analogue output and internal logic

Immunity to microbreaks

10 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.56 cm

Package 1 width

5.08 cm

Package 1 length

6.86 cm

Package 1 weight

40 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

3.364 kg

Unit type of package 3

P12

Number of units in package 3

2400

Package 3 height

75 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

118 kg

Pvc free

Yes

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

44.8810115679

Global warming ; total life cycle

45 kg CO2 eq.

Minimum percentage of recycled plastic content
