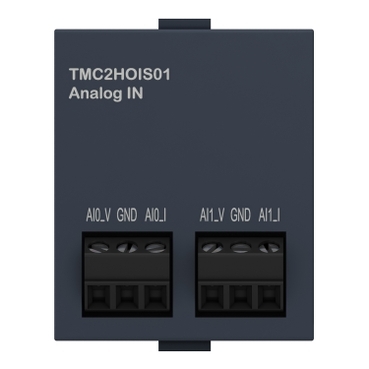

Modicon M221, Analogue input cartridge, hoisting 2 analog I/O extension

Home ProductsIndustrialModiconAnalogue input cartridge

Modicon M221, Analogue input cartridge, hoisting 2 analog I/O extension

Item Number: TMC2HOIS01

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width35 mm

Height icon

Height41 mm

Depth icon

Depth15 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon M221

Product or component type

analogue input cartridge

Product compatibility

Modicon M221C

Sustainable offer status

Green Premium product

Physical

Type of cable

twisted shielded pairs cable

Height

41 mm

Depth

15 mm

Width

35 mm

Net weight

0.015 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1403017EN

Circularity profile

ENVEOLI1403017EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

1

Product specific application

hoisting applications

Analogue input number

2

Analogue input type

current 4...20 mA| current 0...20 mA| voltage 0...10 V

Analogue input resolution

12 bits

Lsb value

2.44 mV 0...10 Vvoltage|4.88 µA 0...20 mAcurrent|3.91 µA 4...20 mAcurrent

Conversion time

20 ms

Sampling duration

10 ms

Absolute accuracy error

+/- 0.1 % of full scale at 25 °C|+/- 1 % of full scale

Temperature drift

+/- 0.02 %FS/°C

Repeat accuracy

+/- 0.5 %FS

Non-linearity

+/- 0.01 %FS

Cross talk

<= 1 LSB

Electrical connection

3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs

Maximum cable distance between devices

twisted shielded pairs cable: <30 m for input

Insulation

non-insulated between analogue input and internal logic

Permissible continuous overload

13 V, analogue input type: voltage|40 mA, analogue input type: current

Input impedance

<= 250 Ohm current|>= 1 MOhm voltage

Immunity to microbreaks

10 ms

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

4.6 cm

Package 1 length

7.0 cm

Package 1 weight

20.0 g

Unit type of package 2

S02

Number of units in package 2

75

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

3.305 kg

Pvc free

Yes
