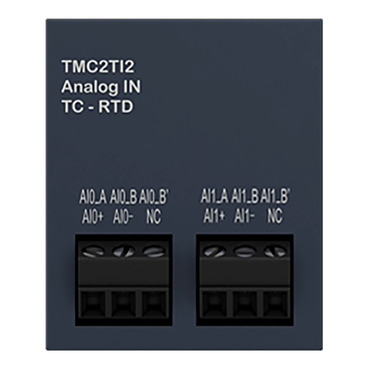

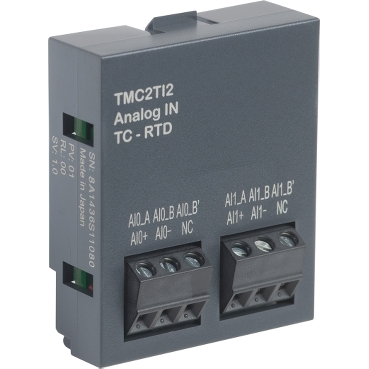

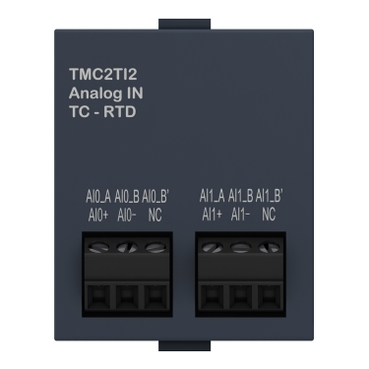

Modicon M221 Analogue input cartridge

Item Number: TMC2TI2

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For TMC2TI2

Download

Product Dimensions

Width35 mm

Height41 mm

Depth15 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480649158	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480649158	-

Specifications

Design

Range of product

Modicon M221

Product or component type

analogue input cartridge

Product compatibility

Modicon M221C

Physical

Type of cable

twisted shielded pairs cable

Height

41 mm

Depth

15 mm

Width

35 mm

Net weight

0.015 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403017EN

Circularity profile

ENVEOLI1403017EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

2400

Packaging made with recycled cardboard

Packaging without single use plastic

Yes

Package 2 bare product quantity

150

Package 1 bare product quantity

Analogue input number

Analogue input type

thermocouple - 200...1000 °C with thermocouple J
Ni 100/Ni 1000 temperature probe - 60...180 °C
Pt 100 temperature probe - 200...850 °C
Pt 1000 temperature probe - 200...600 °C
thermocouple - 200...1300 °C with thermocouple K
thermocouple 0...1760 °C with thermocouple R
thermocouple 0...1760 °C with thermocouple S
thermocouple 0...1820 °C with thermocouple B
thermocouple - 200...400 °C with thermocouple T
thermocouple - 200...1300 °C with thermocouple N
thermocouple - 200...800 °C with thermocouple E
thermocouple 0...2315 °C with thermocouple C

Analogue input resolution

14 bits

Lsb value

0.1 °C

Sampling duration

125 ms, analogue input type: thermocouple
250 ms, analogue input type: temperature probe

Absolute accuracy error

+/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe
+/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C
+/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C
+/- 6 °C at 25 °C for thermocouple R, S 0...200 °C
+/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C
+/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C
+/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C
+/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C
+/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C
+/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C
+/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C
+/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C
+/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C
+/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C

Temperature drift

+/- 0.02 %FS/°C

Repeat accuracy

+/- 0.5 %FS

Non-linearity

+/- 0.01 %FS

Cross talk

<= 1 LSB

Electrical connection

3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs

Maximum cable distance between devices

twisted shielded pairs cable: <30 m for input

Insulation

non-insulated between analogue input and internal logic

Input impedance

>= 1 MOhm

Immunity to microbreaks

10 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.500 cm

Package 1 width

4.500 cm

Package 1 length

7.000 cm

Package 1 weight

40.000 g

Unit type of package 2

S02

Number of units in package 2

150

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.323 kg

Unit type of package 3

P12

Number of units in package 3

2400

Package 3 height

100.000 cm

Package 3 width

125.000 cm

Package 3 length

55.000 cm

Package 3 weight

131.160 kg

Pvc free

Yes

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

4.8435335617

Global warming ; total life cycle

5 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications
