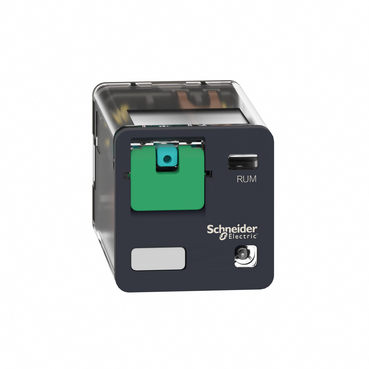

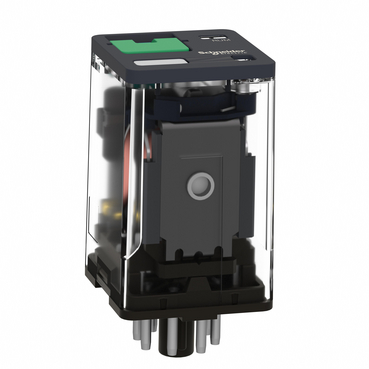

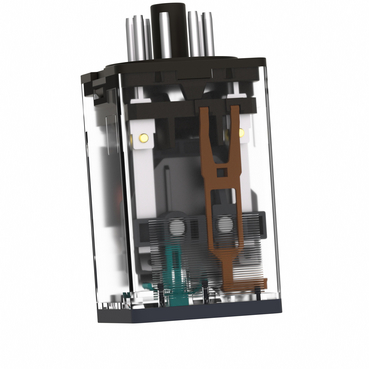

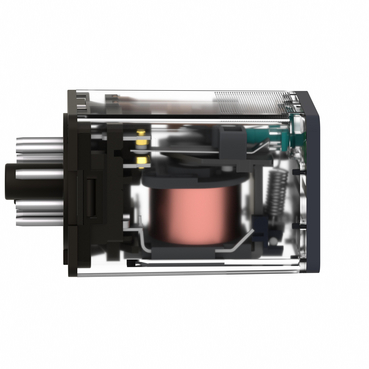

Harmony Electromechanical Relays, Universal plug in relay, 10A, 3CO, with LED, lockable test button, 110V DC

Home ProductsIndustrialHarmonyUniversal plug in relay

Harmony Electromechanical Relays, Universal plug in relay, 10A, 3CO, with LED, lockable test button, 110V DC

Item Number: RUMC32FD

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

plug-in relay

Sustainable offer status

Green Premium product

Physical

Control type

lockable test button

[in] rated current

10 A

[ie] rated operational current

10 A at 277 V AC conforming to UL|10 A at 30 V DC conforming to UL|10 A at 277 V AC (same polarity) conforming to CSA|10 A at 30 V DC conforming to CSA|5 A at 250 V AC (NC) conforming to IEC|5 A at 28 V DC (NC) conforming to IEC|10 A at 250 V AC (NO) conforming to IEC|10 A at 28 V DC (NO) conforming to IEC

Mechanical durability

5000000 cycles

Electrical durability

100000 cycles for resistive load

Net weight

0.086 kg

Device presentation

complete product

Product certifications

UL|EAC|CSA

Standards

CSA C22.2 No 14|UL 508|IEC 61810-1

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...55 °C

Ip degree of protection

IP40

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1406038EN

Circularity profile

N/A

California proposition 65

"WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Contacts material

AgNi

Others

Package 1 bare product quantity

1

Series name

Universal

Device short name

RUM

Contacts type and composition

3 C/O

[uc] control circuit voltage

110 V DC

[ithe] conventional enclosed thermal current

10 A at -40-55 °C

Status led

with

Utilisation coefficient

20 %

[uc] control circuit voltage

110 V

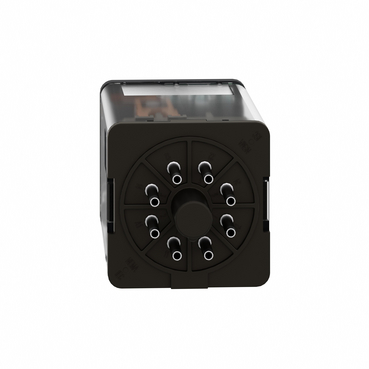

Shape of pin

cylindrical

[ui] rated insulation voltage

250 V conforming to IEC|300 V conforming to CSA|300 V conforming to UL

[uimp] rated impulse withstand voltage

4 kV (1.2/50 µs)

Maximum switching voltage

250 V conforming to IEC

Load current

10 A at 250 V AC|10 A at 28 V DC

Maximum switching capacity

2500 VA/280 W

Minimum switching capacity

170 mW at 10 mA, 17 V

Operating rate

<= 18000 cycles/hour no-load|<= 1200 cycles/hour under load

Average coil consumption

1.4 W

Drop-out voltage threshold

>= 0.1 Uc DC

Operating time

20 ms at nominal voltage

Reset time

20 ms at nominal voltage

Average resistance

7300 Ohm at 20 °C +/- 15 %

Rated operational voltage limits

88...121 V DC

Protection category

RT I

Test levels

level A group mounting

Safety reliability data

B10d = 100000

Operating position

any position

Compatibility code

RUM

Dielectric strength

1500 V AC between contacts with micro disconnection|2500 V AC between coil and contact with reinforced|2000 V AC between poles with basic

Vibration resistance

3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation|4 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating

Shock resistance

10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27|10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.7 cm

Package 1 width

3.8 cm

Package 1 length

7.2 cm

Package 1 weight

95.0 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

4.0 cm

Package 2 width

14.6 cm

Package 2 length

19.8 cm

Package 2 weight

975.0 g

Unit type of package 3

S02

Number of units in package 3

60

Package 3 height

15.0 cm

Package 3 width

30.0 cm

Package 3 length

40.0 cm

Package 3 weight

6.28 kg
