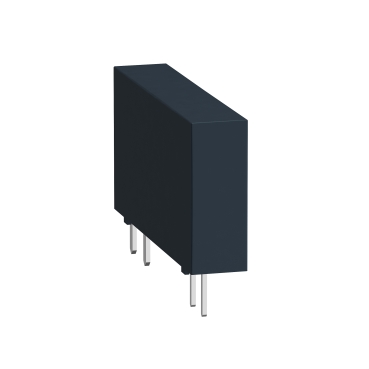

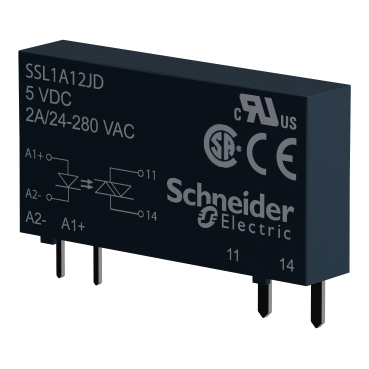

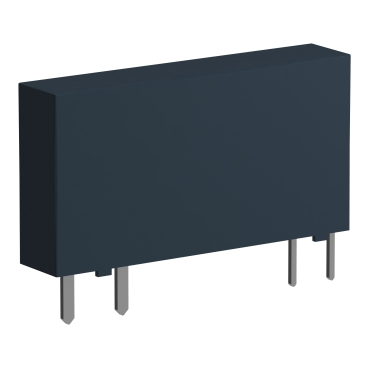

Harmony Solid State Relays, Solid state slim relay, 2A, random switching, input 15...30V DC, output 24...280V AC

Item Number: SSL1A12BDR

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width5 mm

Height28 mm

Depth15 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480579738	-
12		13606480579735	-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

plug-in relay

Sustainable offer status

Green Premium product

Physical

Mounting support

socket

[in] rated current

2 A

Width

5 mm

Height

28 mm

Depth

15 mm

Net weight

0.0041 kg

Device presentation

complete product

Product certifications

UL|CSA

Marking

Ambient air temperature for operation

-20...80 °C

Ambient air temperature for storage

-20...85 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1405004EN

Circularity profile

ENVEOLI1405004EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

1080

Device short name

SSL

Network number of phases

1 phase

[uc] control circuit voltage

15...30 V

Output switching mode

random voltage switching

Output voltage

24...280 V AC

[uc] control circuit voltage

15...30 V DC

Capacitance unbalance

1.5 pF input/output

Minimum switching voltage

15 V DC turn-on

Maximum switching voltage

10 V DC turn-off

Input current limits

6 mA

Input impedance

3500 Ohm

Solid state output type

SCR output|random voltage switching

Load current

0.07...2 A

Absolute maximum voltage

600 V AC

Surge current

120 A for 16.6 ms|115 A for 20 ms

Maximum voltage drop

<1.1 V on-state

Maximum i²t for fusing

66 A².s for 10 ms at 50 Hz|60 A².s for 8.3 ms at 60 Hz

Maximum leakage current

4 mA off-state

Dv/dt

500 V/µs off-state at maximum voltage

Response time

0.5 cycle (turn-off)|0.1 ms (turn-on)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

2500 V for input/output

Pollution degree

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

0.700 cm

Package 1 width

2.500 cm

Package 1 length

37.000 cm

Package 1 weight

4.000 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

0.700 cm

Package 2 width

2.500 cm

Package 2 length

37.000 cm

Package 2 weight

61.000 g

Unit type of package 3

S01

Number of units in package 3

1080

Package 3 height

15.000 cm

Package 3 width

15.000 cm
