Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, DC switching, input 4...32V DC, output 1…100V DC

Item Number: SSM1D312BD

1 PCE 0

Where To Buy

Datasheet

Download

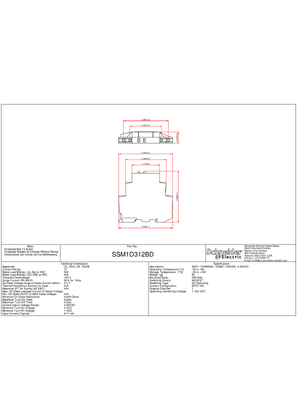

Product Dimensions

Width18 mm

Height90.3 mm

Depth83.7 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480579479	-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

modular DIN rail relay

Sustainable offer status

Green Premium product

Physical

Number of channels

Connections - terminals

screw connectors

Mounting support

symmetrical DIN rail

[in] rated current

12 A

Connections - terminals

screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input|screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for input status

Width

18 mm

Height

90.3 mm

Control type

without test button

Depth

83.7 mm

Net weight

0.09 kg

Device presentation

complete product

Standards

IEC 60950-1|IEC 62314|IEC 61000

Product certifications

CSA|UL

Marking

Ip degree of protection

IP20

Ambient air temperature for operation

-30...80 °C

Ambient air temperature for storage

-30...100 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1307069EN

Circularity profile

ENVEOLI1307069EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Device short name

SSM

Network number of phases

1 phase

[uc] control circuit voltage

4...32 V

Output switching mode

DC switching

Output voltage

1...100 V DC

[uc] control circuit voltage

4...32 V DC

Tightening torque

0.5...0.8 N.m for input|0.5...0.8 N.m for output

Capacitance unbalance

10 pF for input/output

Minimum switching voltage

4 V DC turn-on

Maximum switching voltage

1 V DC turn-off

Input current limits

9...11 mA

Solid state output type

DC switching|Mosfet output

Load current

0.0025...12 A

Absolute maximum voltage

100 V

Surge current

100 A for 10 ms

Maximum voltage drop

<0.5 V on-state

Resistance

0.045 Ohm on-state

Maximum leakage current

0.1 mA off-state

Response time

0.6 ms (turn-on)|0.3 ms (turn-off)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

4 kV DC for input/output|4 kV DC for input or output to case

Pollution degree

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2 cm

Package 1 width

9 cm

Package 1 length

9.5 cm

Package 1 weight

91 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 cm

Package 2 width

30 cm
