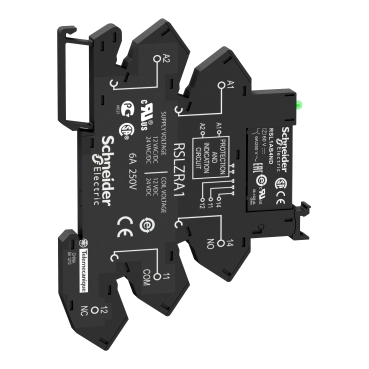

Harmony Electromechanical Relays Slim interface relay pre assembled

Item Number: RSL1PRFU

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For RSL1PRFU

Download

Product Dimensions

Width6.2 mm

Height78.6 mm

Depth101 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480077920	-
10	13606480077927	-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480077920	-
10		13606480077927	-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

pre-assembled plug-in relay with socket

Warranty

18 months

Physical

[in] rated current

6 A

Fixing mode

plastic compression spring

[ie] rated operational current

6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL

Electrical durability

60000 cycles for resistive load, 6 A at 250 V, AC-1

Mechanical durability

10000000 cycles

Control type

without lockable test button

Connections - terminals

spring terminals

Connections - terminals

spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end

Mounting support

35 mm symmetrical DIN rail

Device presentation

complete product

Sale per indivisible quantity

Width

6.2 mm

Height

78.6 mm

Depth

101 mm

Net weight

0.029 kg

Ip degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-40...70 °C

Standards

IEC 61810-1
UL 508
CSA C22.2 No 14

Product certifications

CSA
GOST
UL

Marking

Ambient air temperature for storage

-40...85 °C

China rohs regulation

Environmental disclosure

ENVPEP1405004EN

Circularity profile

ENVEOLI1405004EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material

silver alloy (AgSnO2)

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

300

Series name

RSL series

Relay type

slim interface relay

Contact operation

standard

Contacts type and composition

1 C/O

Status led

with

[uc] control circuit voltage

60 V

[uc] control circuit voltage

110 V AC/DC

Control circuit type

AC/DC

[ithe] conventional enclosed thermal current

6 A at -40-55 °C

Average resistance

20500 Ohm network: DC at 23 °C +/- 10 %

[uimp] rated impulse withstand voltage

6 kV conforming to IEC

Minimum switching current

100 mA

Minimum switching voltage

12 V

[ui] rated insulation voltage

250 V conforming to IEC
277 V conforming to cUL

Minimum switching capacity

120 mW

Maximum switching voltage

277 V

Drop-out voltage threshold

>= 0.05 Uc

Load current

6 A at 250 V AC 0.5 mm mounting distance

Maximum switching capacity

1500 VA
150 W

Operating time

5 ms reset
12 ms

Terminals description iso n°1

(11-12-14)OC
(A1-A2)CO

Average coil consumption

0.17 W, DC

Safety reliability data

B10d = 60000

Operating rate

<= 72000 cycles/hour no-load
<= 360 cycles/hour under load

Compatibility code

RSL

Reset time

20 ms

Contact terminal arrangement

separate

Clamping force

10...40 N

Protection category

RT III

Operating position

any position

Test levels

level A group mounting

Shape of pin

flat (PCB type)

Input voltage

110 V AC/DC (input voltage limit: 88...126.5 V)

Dielectric strength

1000 V AC between contacts
4000 V AC between coil and contact

Vibration resistance

10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles not operating conforming to IEC 60068-2-6
5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)10 cycles in operation conforming to IEC 60068-2-6

Shock resistance

10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

0.700 cm

Package 1 width

8.000 cm

Package 1 length

9.700 cm

Package 1 weight

28.000 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

7.000 cm

Package 2 width

10.800 cm

Package 2 length

8.500 cm

Package 2 weight

302.000 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

9.600 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

VERSION

1.0

DATE

30 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 502.1 KB

ZIP

English

VERSION

16.0

DATE

23 Oct 2024

REVISION

16.0

DOWNLOAD (ZIP) 6.9 MB

Colour ()
