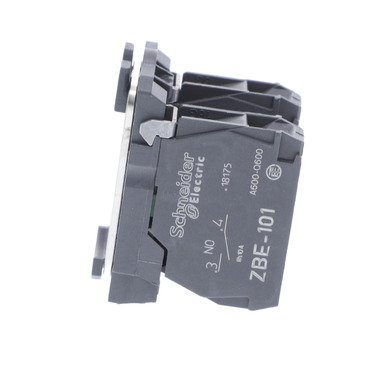

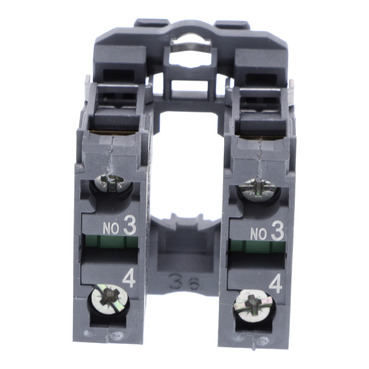

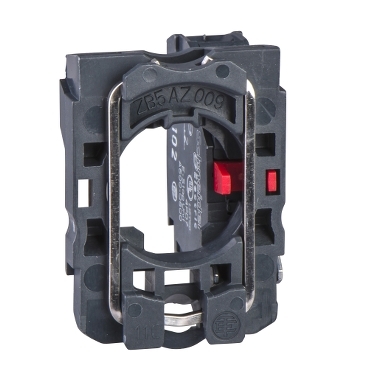

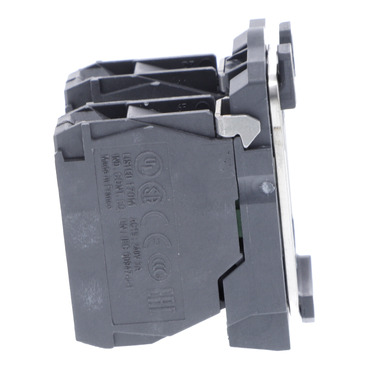

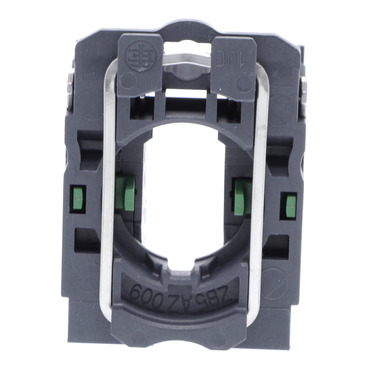

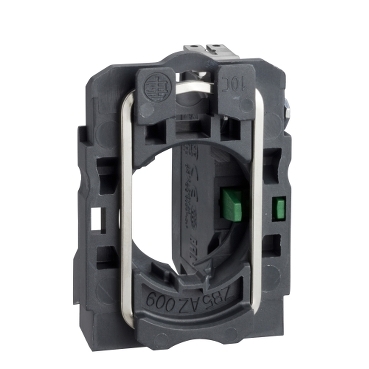

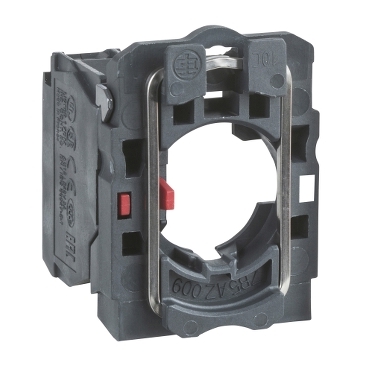

Harmony XB5, Single contact block with body fixing collar, plastic, screw clamp terminal, 2NO

Item Number: ZB5AZ103

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110924435	-
5		53389110924430	-

Specifications

Design

Range of product

Harmony XB5

Product or component type

complete body/contact assembly

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sale per indivisible quantity

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1|screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Mechanical durability

10000000 cycles

[ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1|6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1|0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1|0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1|0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1|1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Device presentation

basic sub-assemblies

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP20 conforming to IEC 60529

Standards

UL 508|IEC 60947-1|CSA C22.2 No 14|IEC 60947-5-4|IEC 60947-5-1|JIS C8201-5-1|JIS C8201-1

Product certifications

GL|LROS (Lloyds register of shipping)|BV|UL|DNV|CSA

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2303008EN

Circularity profile

ENVEOLI2303008EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Device composition

fixing collar|body

Contacts material

silver alloy (Ag/Ni)

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

300

Package 4 bare product quantity

2400

Device short name

ZB5

Fixing collar material

plastic

Head type

standard

Contacts type and composition

2 NO

Contact operation

slow-break

Contact block type

single

Cad overall width

30 mm

Cad overall height

42 mm

Cad overall depth

32 mm

Terminals description iso n°1

(13-14)NO

Contacts usage

standard contacts

Positive opening

without

Operating travel

2.6 mm (NO changing electrical state)|4.3 mm (total travel)

Tightening torque

0.8...1.2 N.m conforming to IEC 60947...1

Shape of screw head

cross compatible with Philips no 1 screwdriver|cross compatible with pozidriv No 1 screwdriver|slotted compatible with flat Ø 4 mm screwdriver|slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Electrical reliability

λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4|λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Customizable

Compatibility code

ZB5

Protective treatment

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.500 cm

Package 1 width

3.400 cm

Package 1 length

5.400 cm

Package 1 weight

29.200 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

4.500 cm

Package 2 width

3.400 cm

Package 2 length

26.500 cm

Package 2 weight

147.000 g

Unit type of package 3

S03

Number of units in package 3

300

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

9.260 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB5, Single contact block with body fixing collar, plastic, screw clamp terminal, 2NO

Item Number: ZB5AZ103

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

End of Life Manual

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

ZB5AZ103_CAD_DOC

Discover catalog Harmony XB5 plastic Control and signaling units

Catalog Harmony XALF Lift inspection stations

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

E-Flex Adjustable Speed Drive Controllers Installation Instructions

XB5 Plastic Non Illuminated Push Button - Product Environmental Profile

XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions

Technical Illustration - Dimensions

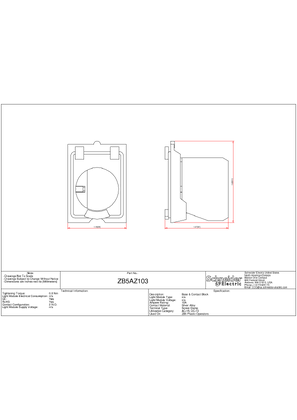

ZB5AZ103_2DSalesDrawing_PDF
