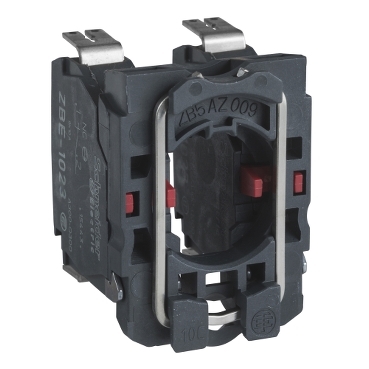

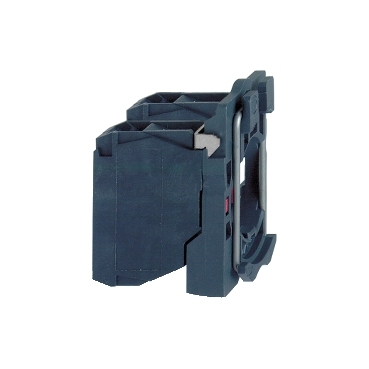

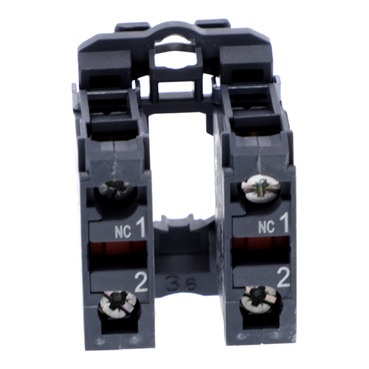

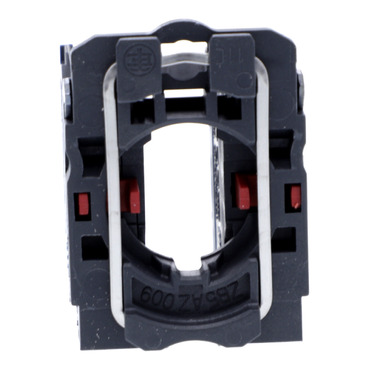

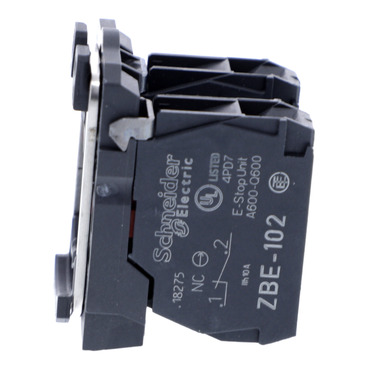

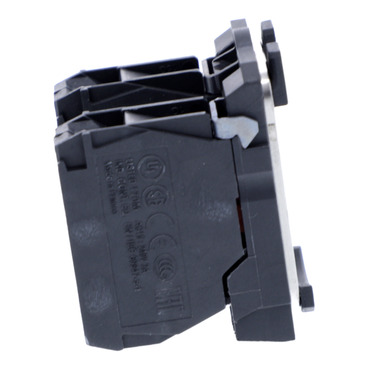

Harmony XB5 Single contact block with body fixing collar
Item Number: ZB5AZ104
Datasheet
For ZB5AZ104
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Sale per indivisible quantity
Connections - terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Mechanical durability
[ie] rated operational current
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability
- 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation
Ambient air temperature for storage
Ambient air temperature for operation
Ip degree of protection
Standards
- IEC 60947-5-4
- UL 508
- JIS C8201-5-1
- IEC 60947-1
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-1
Product certifications
- BV
- UL
- CSA
- DNV
- LROS (Lloyds register of shipping)
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Material
Device composition
- body
- fixing collar
Contacts material
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Technical illustration
-

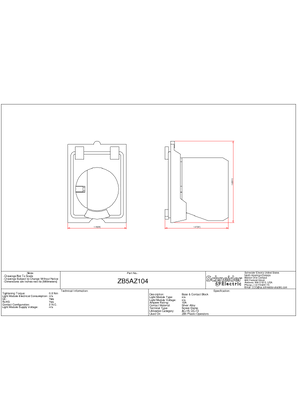

Technical Drawing
-
