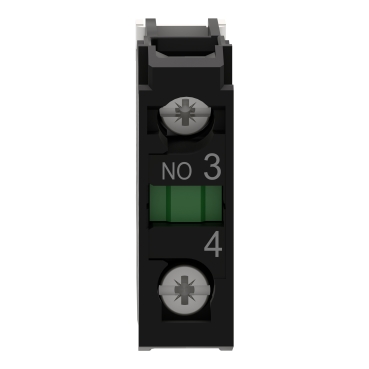

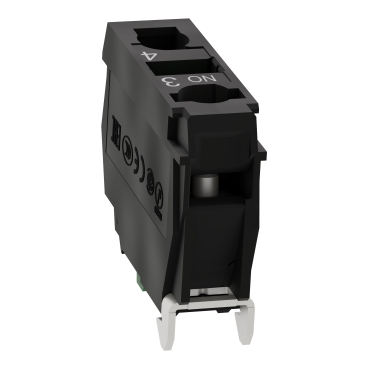

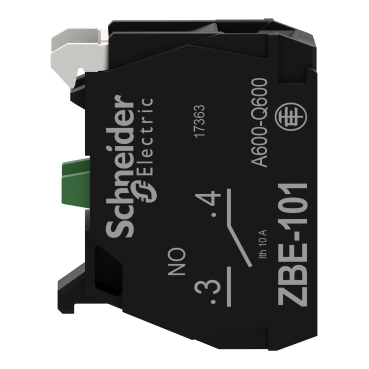

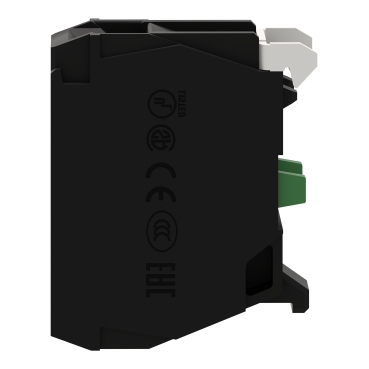

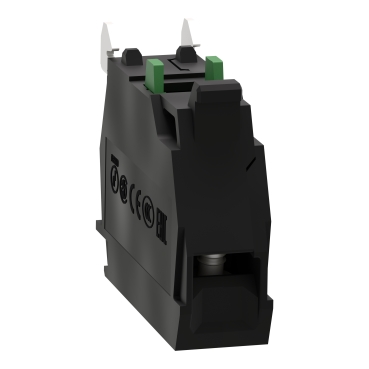

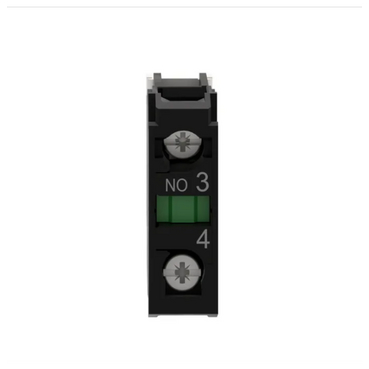

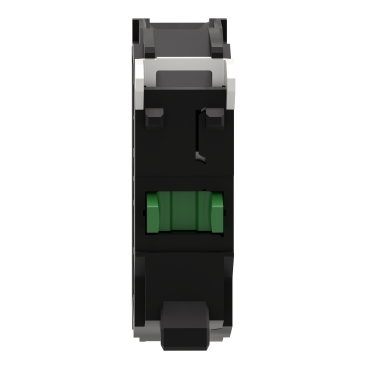

Harmony XB4, Single contact block, Harmony XB4, silver alloy, screw clamp terminal, 1NO

Home ProductsIndustrialHarmonySingle contact block

Harmony XB4, Single contact block, Harmony XB4, silver alloy, screw clamp terminal, 1NO

Item Number: ZBE101

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5|Harmony XB4

Product or component type

contact block

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sale per indivisible quantity

5

Ip degree of protection

IP20 conforming to IEC 60529

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1|screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Net weight

0.011 kg

Mechanical durability

10000000 cycles

[ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1|6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1|0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1|0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1|0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1|1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Standards

CSA C22.2 No 14|IEC 60947-5-1|UL 508|IEC 60947-1|JIS C8201-5-1|IEC 60947-5-4|JIS C8201-1

Product certifications

CCC|UL|DNV|GL|GOST|LROS (Lloyds register of shipping)|BV|CSA

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

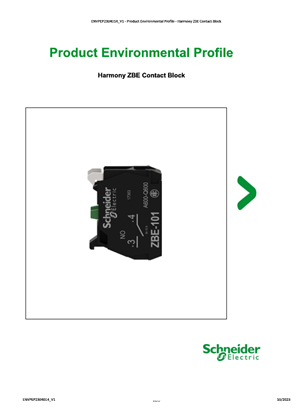

Environmental disclosure

ENVPEP2304014EN

Circularity profile

N/A

California proposition 65

"WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Contacts material

silver alloy (Ag/Ni)

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Package 3 bare product quantity

800

Package 4 bare product quantity

6400

Device short name

ZBE

Contact operation

slow-break

Contact block type

single

Contacts usage

standard contacts

Contacts type and composition

1 NO

Positive opening

without

Operating travel

2.6 mm (NO changing electrical state)|4.3 mm (total travel)

Operating force

2.3 N NO changing electrical state

Tightening torque

0.8...1.2 N.m conforming to IEC 60947...1

Shape of screw head

cross compatible with pozidriv No 1 screwdriver|slotted compatible with flat Ø 4 mm screwdriver|slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Mounting of block

front mounting

Electrical composition code

C1 (quantity <= 9 )|C2 (quantity <= 7 )|C3 (quantity <= 6 )|C4 (quantity <= 4 )|C5 (quantity <= 5 )|C6 (quantity <= 3 )|C7 (quantity <= 4 )|C8 (quantity <= 2 )|C9 (quantity <= 3 )|C12 (quantity <= 6 )|M1 (quantity <= 6 )|M2 (quantity <= 4 )|M3 (quantity <= 4 )|M5 (quantity <= 2 )|M6 (quantity <= 2 )|M7 (quantity <= 6 )|M8 (quantity <= 4 )|M9 (quantity <= 2 )|SF1 (quantity <= 3 )|SF2 (quantity <= 2 )|MF1 (quantity <= 2 )|MF2 (quantity <= 2 )|C10 (quantity <= 2 )|M4 (quantity <= 2 )|C13 (quantity <= 1 )

Compatibility code

ZBE

Protective treatment

TH

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.000 cm

Package 1 width

2.500 cm

Package 1 length

3.000 cm

Package 1 weight

9.000 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

4.500 cm

Package 2 width

5.500 cm

Package 2 length

5.500 cm

Package 2 weight

52.300 g

Unit type of package 3

S03

Number of units in package 3

800

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

8.691 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • System User Guide

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

NO SCREW TERMINAL CONTACT
ZIP

NO SCREW TERMINAL CONTACT

VERSION

1.2

DATE

12 Aug 2024

REVISION

1.2

DOWNLOAD (ZIP) 4.6 MB
ZBE101_CAD_DOC
ZIP

ZBE101_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 163.6 KB
Discover catalog Harmony XB5 plastic Control and signaling units
ZIP

Discover catalog Harmony XB5 plastic Control and signaling units

VERSION

18.0

DATE

06 Sep 2024

REVISION

18.0

DOWNLOAD (ZIP) 22.2 MB
Discover the Harmony XB4 metal Control and signaling units catalog
ZIP

Discover the Harmony XB4 metal Control and signaling units catalog

VERSION

17.0

DATE

06 Sep 2024

REVISION

17.0

DOWNLOAD (ZIP) 28.1 MB
Catalog Harmony XALD and XALK plastic control stations English 07/2022
ZIP

Catalog Harmony XALD and XALK plastic control stations English 07/2022

VERSION

4.0

DATE

06 Aug 2024

REVISION

4.0

DOWNLOAD (ZIP) 10.1 MB
Catalog Harmony XALF Lift inspection stations
ZIP

Catalog Harmony XALF Lift inspection stations

VERSION

5.0

DATE

06 Aug 2024

REVISION

5.0

DOWNLOAD (ZIP) 5.1 MB
FuPacT Fusegear range from 32 to 1250A Catalog
ZIP

FuPacT Fusegear range from 32 to 1250A Catalog

VERSION

2.4

DATE

21 Feb 2023

REVISION

2.4

DOWNLOAD (ZIP) 63.7 MB
Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions
ZIP

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

VERSION

1.0

DATE

22 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 152.9 KB

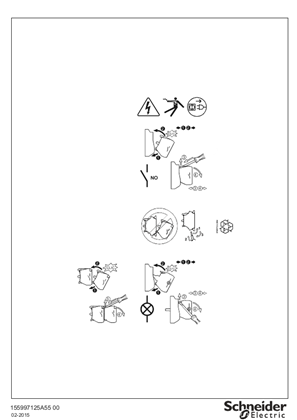

ZB... Contact and light blocks mounting for XB4 and XB5, Instruction Sheet
ZIP

ZB... Contact and light blocks mounting for XB4 and XB5, Instruction Sheet

VERSION

1.0

DATE

21 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 218.8 KB
E-Flex Adjustable Speed Drive Controllers Installation Instructions
ZIP

E-Flex Adjustable Speed Drive Controllers Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 5.9 MB
Harmony XB5 Pilot Light
ZIP

Harmony XB5 Pilot Light

VERSION

1.0

DATE

24 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Twido and Altivar, Magelis and OTB, FTB
ZIP

Twido and Altivar, Magelis and OTB, FTB

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 13.6 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.2

DATE

20 May 2024

REVISION

1.2

DOWNLOAD (ZIP) 325 KB

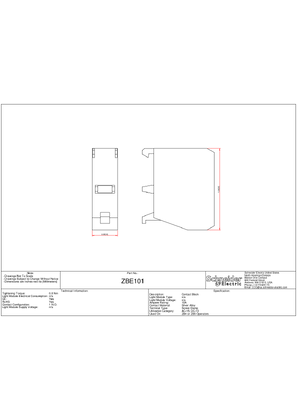

ZBE101_2DSalesDrawing_PDF
