multifunction phase control relay RM35-T - range 194..528 V AC

Home ProductsIndustrialHarmonyModular multifunction 3 phase supply Control Relay

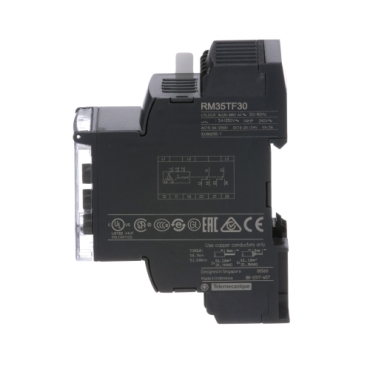

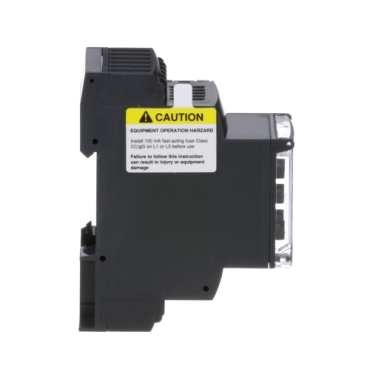

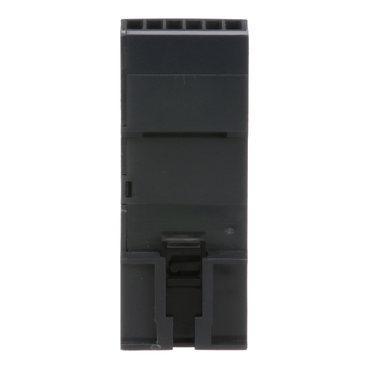

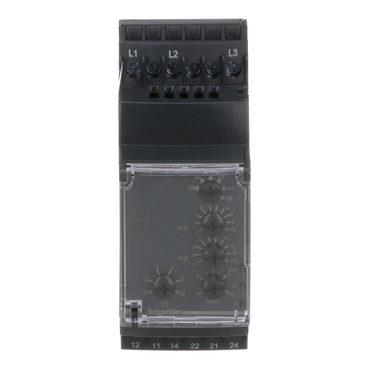

Harmony Control Relays, Modular multifunction 3 phase supply Control Relay, 5A, 2CO, 220...480V AC

Item Number: RM35TF30

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119405263	-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

3-phase control relay

Warranty

18 months

Physical

Connections - terminals

screw connectors

[in] rated current

5 A

Marking

Insulation resistance

> 500 MOhm at 500 V DC conforming to IEC 60255-5|> 500 MOhm at 500 V DC conforming to IEC 60664-1

Connections - terminals

screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end|screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end|screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end|screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Local signalling

LED (green) for power ON|LED (yellow) for relay ON|LED (yellow) for fault

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical durability

100000 cycles

Mechanical durability

30000000 cycles

Width

35 mm

Net weight

0.13 kg

Control type

without test button

Standards

IEC 60255-1

Product certifications

GL|UL|CSA|GOST|C-Tick

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-20...50 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

Ip degree of protection

IP20 (terminals) conforming to IEC 60529|IP30 (casing) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

Environmental disclosure

ENVPEP1504008EN

Circularity profile

ENVEOLI1504008EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

384

Relay type

multifunction control relay

Product specific application

for 3-phase supply

Relay name

RM35TF

Relay monitored parameters

undervoltage and overvoltage in window mode|phase sequence|phase failure detection|asymmetry

Time delay type

adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault

Switching capacity in va

1250 VA

Measurement range

220...480 V AC

Contacts type and composition

2 C/O

[uc] control circuit voltage

220...480 V

Reset time

1500 ms at 480 V

Maximum switching voltage

250 V AC|250 V DC

Minimum switching current

10 mA at 5 V DC

Maximum switching current

5 A AC|5 A DC

[us] rated supply voltage

, self-powered

Supply voltage limits

194...528 V AC, 3 phases

Control circuit voltage limits

- 12 % + 10 % Un

Power consumption in va

0...22 VA at 400 V AC 50 Hz

Voltage detection threshold

< 194 V

Control circuit frequency

50...60 Hz +/- 10 %

Output contacts

2 C/O

Nominal output current

5 A

Measurement voltage limits

176...528 V AC

Hysteresis

2 %

Run-up delay at power-up

650 ms

Maximum measuring cycle

140 ms measurement cycle as true rms value

Threshold adjustment voltage

2...20 % of Un selected|-12...-2 % in the range 220 V AC|+2...+10 % in the range 480 V AC

Voltage range

220...480 V phase to phase

Adjustment of asymmetry threshold

5...15 % of Un selected

Repeat accuracy

0.3 % for time delay|0.5 % for input and measurement circuit

Measurement error

< 1 % over the whole range with voltage variation|0.05 %/°C with temperature variation

Response time

< 200 ms (in the event of a fault)

Overvoltage category

III conforming to IEC 60664-1

[ui] rated insulation voltage

400 V conforming to IEC 60664-1

Supply frequency

50/60 Hz +/- 10 %

Operating position

any position without derating

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Operating rate

<= 360 operations/hour full load

Utilisation category

Safety reliability data

MTTFd = 399.5 years|B10d = 360000

Compatibility code

RM3

Electromagnetic compatibility

emission standard for industrial environments conforming to IEC 61000-6-4|emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3|immunity for industrial environments conforming to IEC 61000-6-2

Directives

89/336/EEC - electromagnetic compatibility|73/23/EEC - low voltage directive

Vibration resistance

0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6|1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1

Shock resistance

15 gn for 11 ms conforming to IEC 60255-21-1

Pollution degree

3 conforming to IEC 60664-1

Dielectric test voltage

2 kV, 1 min AC 50 Hz

Non-dissipating shock wave

4 kV

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.800 cm

Package 1 width

7.800 cm

Package 1 length

9.700 cm

Package 1 weight

133.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.070 kg

Unit type of package 3

P06

Number of units in package 3

384

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

64.124 kg
