3-phase and single-phase pump control relay

Home ProductsIndustrialHarmonyModular 3 phase and 1 phase pump Control Relay

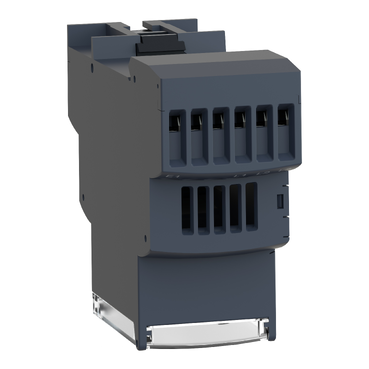

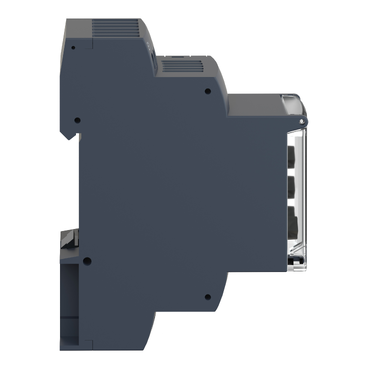

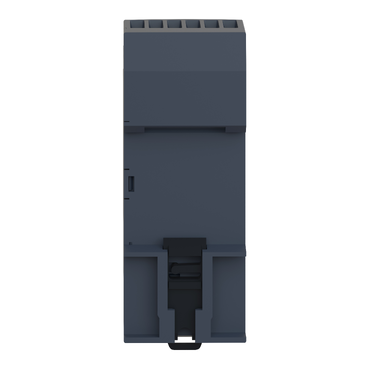

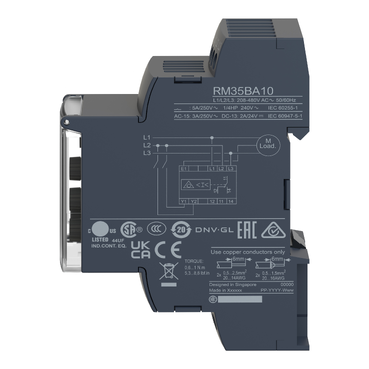

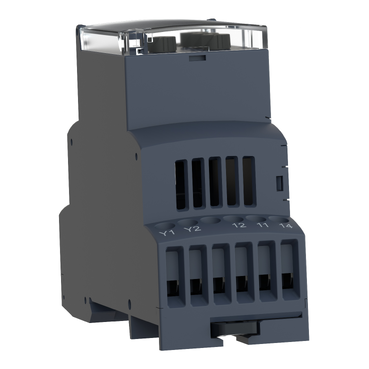

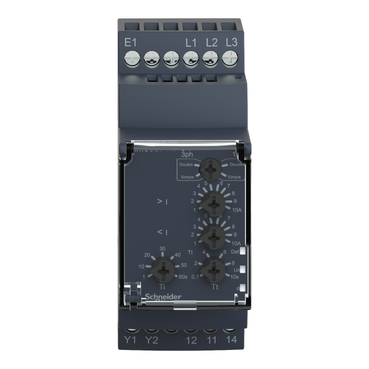

Harmony Control Relays, Modular 3 phase and 1 phase pump Control Relay, 5A, 1CO, 208...480V AC

Item Number: RM35BA10

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119405195	-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

pump control relay

Warranty

18 months

Physical

Connections - terminals

screw connectors

[in] rated current

5 A

Width

35 mm

Marking

CE : EMC 89/336/EEC|CE : 73/23/EEC

Insulation resistance

> 500 MOhm at 500 V DC between supply and relay output conforming to 60255-5|> 500 MOhm at 500 V DC between measurement and relay output conforming to 60664-1|> 1 MOhm at 500 V DC between supply and measurement conforming to 60255-5|> 500 MOhm at 500 V DC between supply and relay output conforming to 60664-1|> 500 MOhm at 500 V DC between measurement and relay output conforming to 60255-5|> 1 MOhm at 500 V DC between supply and measurement conforming to 60664-1

Connections - terminals

screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end|screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end|screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end|screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical durability

100000 cycles

Mechanical durability

30000000 cycles

Control type

without test button

Standards

IEC 60255-6

Product certifications

C-Tick|CSA|GOST|UL|GL

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-20...50 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

Ip degree of protection

IP20 (terminals) conforming to IEC 60529|IP30 (casing) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

Environmental disclosure

ENVPEP1601004EN

Circularity profile

ENVEOLI1601004EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Relay type

pump control relays

Product specific application

for 3-phase and single-phase pump

Relay name

RM35BA

Relay monitored parameters

overcurrent and undercurrent control|phase sequence on 3-phase supply|phase failure on 3-phase supply

Time delay type

adjustable 1...60 s, +/- 10 % Ti- inhibition time delay upon startup|adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault

Switching capacity in va

1250 VA

Minimum switching current

10 mA at 5 V DC

Maximum switching current

5 A AC/DC

Maximum power consumption in va

5 VA AC

Measurement range

208...480 V AC|1...10 A

Utilisation category

[uc] control circuit voltage

208...480 V|230 V

Contacts type and composition

1 C/O

Reset time

2000 ms

Maximum switching voltage

250 V AC/DC

[us] rated supply voltage

208...480 V AC 50/60 Hz, non self-powered|230 V AC 50/60 Hz, non self-powered

Supply voltage limits

183...528 V AC

Control circuit voltage limits

- 15 % + 10 % Un

Resistance across terminals

0.01 Ohm at E1-L2 terminals

Output contacts

1 C/O

Nominal output current

5 A

Maximum measuring cycle

140 ms as true rms value

Run-up delay at power-up

0.5 s

Hysteresis

5 % of threshold

Measurement accuracy

+/- 10 % of the full scale value

Repeat accuracy

+/- 1 % for input and measurement circuit|+/- 1 % for time delay

Measurement error

1 % by volt over the whole range|+/- 0.05 %/°C

Response time

< 300 ms (in the event of a fault)

Input current

11 A permanent at 25 °C E1-L2 terminals|50 A non repetitive < 1 s at 25 °C E1-L2 terminals

Overvoltage category

III conforming to IEC 60664-1

[ui] rated insulation voltage

400 V conforming to IEC 60664-1

Supply frequency

50/60 Hz +/- 10 %

Operating position

any position

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Status led

1 LED green for power ON|1 LED yellow for fault|1 LED yellow for relay ON

Operating rate

<= 360 operations/hour full load

Compatibility code

RM3

Immunity to microbreaks

500 ms

Electromagnetic compatibility

emission standard for industrial environments conforming to IEC 61000-6-4|emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3|immunity for industrial environments conforming to NF EN/IEC 61000-6-2

Vibration resistance

0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1|1 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1

Shock resistance

15 gn for 11 ms conforming to IEC 60255-21-1

Pollution degree

3 conforming to IEC 60664-1

Dielectric strength

2 kV AC 50 Hz (shock wave 4 kV)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.0 cm

Package 1 width

4.6 cm

Package 1 length

9.7 cm

Package 1 weight

123.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

6.526 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony Control Relays, Modular 3 phase and 1 phase pump Control Relay, 5A, 1CO, 208...480V AC

Item Number: RM35BA10

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

Application Notes

Certificates (MSDS)

eTechPub

Declaration of Conformity

Zelio Control - 3D CAD

Discover Harmony Control Relays Catalog - English

RM35... Measurement and Control Relay, Product End-of-Life Instructions

RM... Control Relay, Product End-of-Life Instructions

RM35... Measurement relays, Product End-of-Life Instructions

RM35... Measurement and Control Relay, Product Environmental profile

RM... Control Relay, Product Environmental Profile

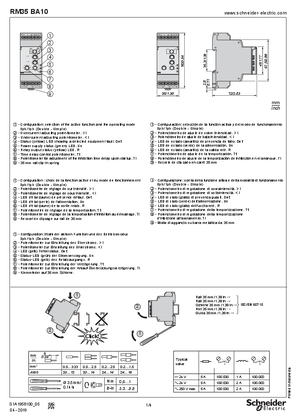

RM35BA10 Pump control Relay, Instruction Sheet
