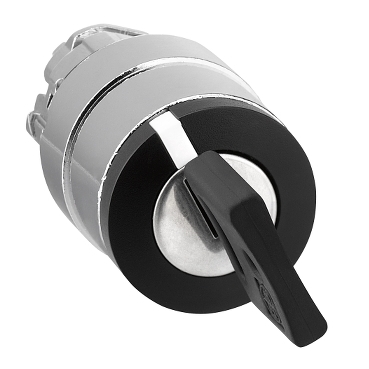

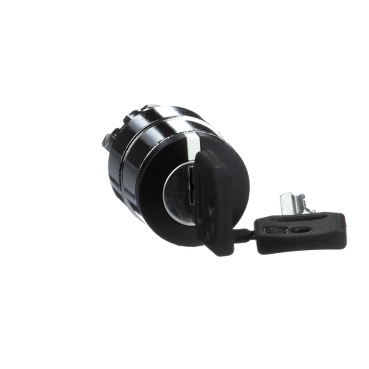

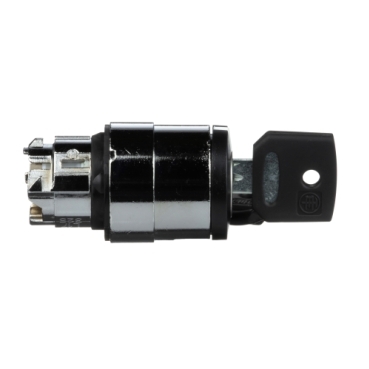

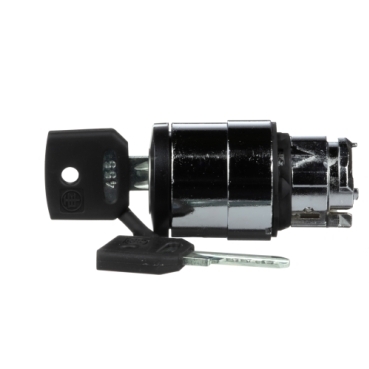

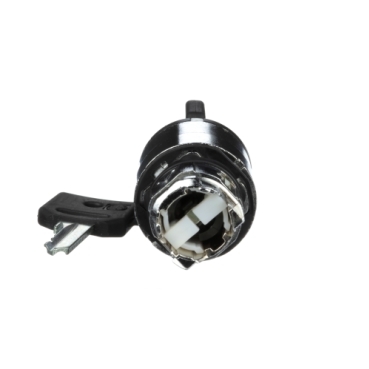

Harmony XB4 Key switch selector head

Item Number: ZB4BG2

1 PCE 0

Retail

$205

RRP (Inc. GST)

Where To Buy

Datasheet

For ZB4BG2

Download

Barcode

Qty	EAN	Colour
1	3389110889215	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389110889215	-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for key selector switch

Warranty

18 months

Physical

Sale per indivisible quantity

Net weight

0.098 kg

Mechanical durability

1000000 cycles

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67
IP69
IP69K

Ik degree of protection

IK06 with keyhole cover ZBGP conforming to IEC 50102

Standards

EN/IEC 60947-1
GB 14048.5
EN/IEC 60947-5-5
EN/IEC 60947-5-1
EN/IEC 60947-5-4
UL 508
CSA C22.2 No 14

Product certifications

CSA
DNV
BV
LROS (Lloyds register of shipping)
UL listed

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2308006EN

Circularity profile

ENVEOLI2308006EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

100

Package 3 bare product quantity

800

Packaging made with recycled cardboard

Packaging without single use plastic

Package 1 bare product quantity

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Operator profile

black key switch

Operator position information

2 positions 90°

Type of keylock

key 455

Key withdrawal position

left

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

72 mm

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Electrical composition code

C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting
C5 for <5 contacts using single blocks in front mounting
C6 for <5 contacts using single and double blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting

Main group

selector switch

Group of product

key switch

Cap/operator or lens colour

black

Customizable

Compatibility code

ZB4

Protective treatment

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.800 cm

Package 1 width

5.400 cm

Package 1 length

9.100 cm

Package 1 weight

105.000 g

Unit type of package 2

S03

Number of units in package 2

100

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

10.990 kg

Unit type of package 3

P06

Number of units in package 3

800

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

99.004 kg

Green premium status for reporting

Green Premium product

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.7340477193

Global warming ; total life cycle

1 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB4 Key switch selector head

Item Number: ZB4BG2

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

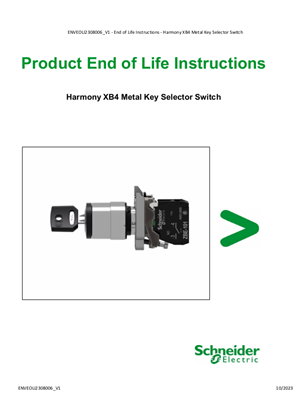

End of Life Manual

Installation Instruction

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

ZB4BG2_2CAD

Discover the Harmony XB4 metal Control and signaling units catalog

Harmony XB5 Pilot Light

Harmony XB5 Pilot Light

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4BG2_2CAD

Discover the Harmony XB4 metal Control and signaling units catalog

Harmony XB5 Pilot Light

Harmony XB5 Pilot Light

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

Technical Illustration - Dimensions

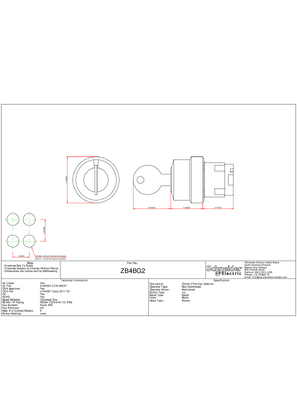

ZB4BG2_2DSalesDrawing_PDF

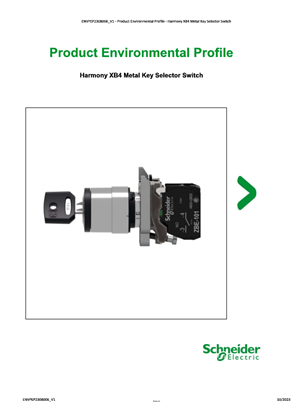

EPDS for Harmony XB4 (English)
