Harmony XB5 Key Selector switch head

Item Number: ZB5AG2

1 PCE 0

Retail

$178

RRP (Inc. GST)

Where To Buy

Datasheet

For ZB5AG2

Download

Barcode

Qty	EAN	Colour
1	3389110905809	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389110905809	-

Specifications

Design

Range of product

Harmony XB5
Harmony XALF

Product or component type

head for key selector switch

Warranty

18 months

Physical

Sale per indivisible quantity

Net weight

0.057 kg

Mechanical durability

1000000 cycles

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP67
IP69
IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

UL 508
IEC 60947-5-1
IEC 60947-1
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-4
JIS C8201-1

Product certifications

DNV
CSA
BV
LROS (Lloyds register of shipping)
UL listed

China rohs regulation

Environmental disclosure

ENVPEP2308009EN

Circularity profile

ENVEOLI2308009EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

Package 3 bare product quantity

150

Package 1 bare product quantity

Package 4 bare product quantity

1200

Device short name

ZB5

Bezel material

dark grey plastic

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

stay put

Operator profile

black key switch

Operator position information

2 positions 90°

Type of keylock

key 455

Key withdrawal position

left

Cad overall width

29 mm

Cad overall height

29 mm

Cad overall depth

72 mm

Main group

selector switch

Group of product

key switch

Station name

XALD 1...5 cut-outs
XALK 2...5 cut-outs

Cap/operator or lens colour

black

Electrical composition code

C4 for <6 contacts using single and double blocks in front mounting
C5 for <5 contacts using single blocks in front mounting
C6 for <5 contacts using single and double blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C3 for <6 contacts using single blocks in front mounting
SF1 for <3 contacts using single blocks in front mounting
SR1 for <3 contacts using single blocks in rear mounting
C15 for <1 contacts using single blocks in front mounting

Customizable

Compatibility code

ZB5

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.500 cm

Package 1 width

5.400 cm

Package 1 length

8.900 cm

Package 1 weight

66.000 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

8.800 cm

Package 2 width

5.200 cm

Package 2 length

26.500 cm

Package 2 weight

343.000 g

Unit type of package 3

S03

Number of units in package 3

150

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

10.800 kg

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

3c268a46-3ce8-41f2-b8e6-6039f5d32036

Green premium status for reporting

Green Premium product

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.4814301783

Global warming ; total life cycle

1 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB5 Key Selector switch head

Item Number: ZB5AG2

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Missing CAD 2024 project C&S

ZB5AG2_CAD

Discover catalog Harmony XB5 plastic Control and signaling units

Catalog Harmony XALF Lift inspection stations

Catalog Harmony XALD and XALK plastic control stations English 07/2022

XB4.. / XB5... Mounting, Instruction Sheet

Missing CAD 2024 project C&S

ZB5AG2_CAD

Discover catalog Harmony XB5 plastic Control and signaling units

Catalog Harmony XALF Lift inspection stations

Catalog Harmony XALD and XALK plastic control stations English 07/2022

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

Harmony XB5 Key Selector Switch

Harmony XB5 Key Selector Switch

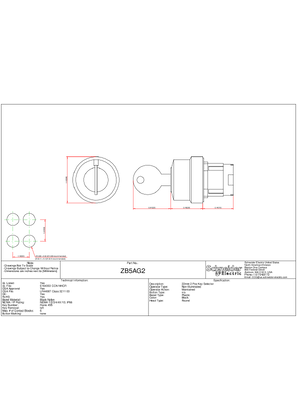

Technical Illustration - Dimensions
