Harmony Electromechanical Relays, Interface plug in relay, 10A, 1CO, with LED, 230V AC

Home ProductsIndustrialHarmonyInterface plug in relay

Harmony Electromechanical Relays, Interface plug in relay, 10A, 1CO, with LED, 230V AC

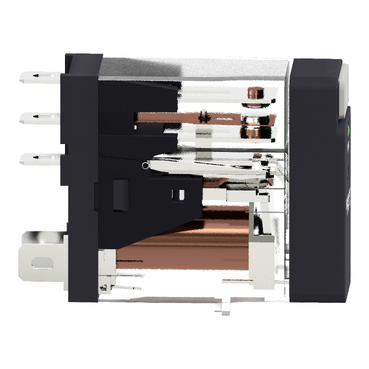

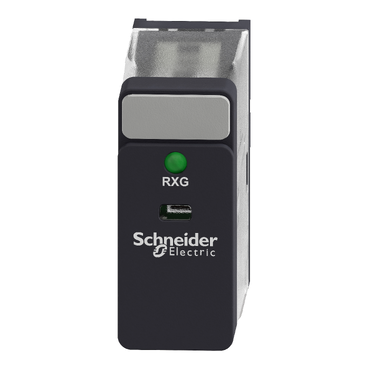

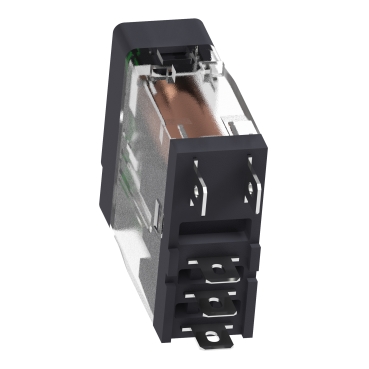

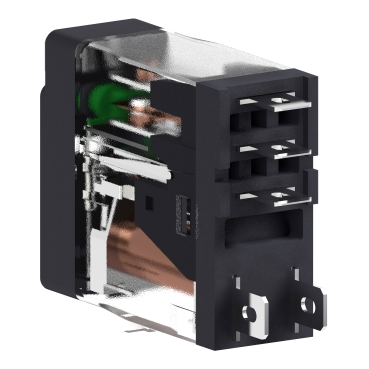

Item Number: RXG13P7

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

plug-in relay

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

10 A

Local signalling

flag

[ie] rated operational current

10 A at 30 V (DC) conforming to UL|10 A at 30 V (DC) conforming to IEC|10 A at 250 V (AC) conforming to IEC|10 A at 250 V (AC) conforming to UL

Electrical durability

100000 cycles for NO resistive load at 55 °C|100000 cycles for NC resistive load at 55 °C

Mounting position

any position

Contact resistance

100 mOhm

Insulation resistance

1000 MOhm at 500 V DC

Electrical insulation class

class F

Mechanical durability

10000000 cycles

Device presentation

complete product

Net weight

0.02 kg

Standards

CSA C22.2 No 14|UL 508|IEC 61810-1

Product certifications

EAC|UL|CE|CSA|DNV-GL

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP40

Relative humidity

10...85 %

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1406006EN

Circularity profile

N/A

California proposition 65

"WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Contacts material

silver alloy (AgSnO2In2O3)

Others

Package 1 bare product quantity

1

Series name

interface relay

Device short name

RXG

Contacts type and composition

1 C/O

[uc] control circuit voltage

230 V

[ithe] conventional enclosed thermal current

10 A at -40-55 °C

Status led

with

Resistance

23500 Ohm +/- 15 %

Shock resistance

20 gn in operation|100 gn not in operation

Average consumption

0.82 VA 60 Hz

Control circuit voltage limits

0.8...1.1 Uc AC

[uc] control circuit voltage

230 V AC 50/60 Hz

Colour of cover

standard

Drop-out voltage threshold

>= 0.3 Uc AC

Load current

10 A at 250 V AC

Minimum switching capacity

500 mW at 100 mA, 5 V DC

Maximum switching capacity

2500 VA

Torque value

0.8 N.m

Safety reliability data

B10d = 100000

Operating time

20 ms

Reset time

20 ms

Overvoltage category

III

Maximum switching voltage

250 V AC|30 V DC

Operating rate

<= 1800 cycles/hour under load|<= 18000 cycles/hour no-load

Protection category

RT I

Utilisation coefficient

20 %

Pollution degree

2

[ui] rated insulation voltage

250 V conforming to IEC|300 V conforming to CSA|300 V conforming to UL

Test levels

level A group mounting

Dielectric strength

1000 V AC between contacts with micro disconnection|5000 V AC between coil and contact with reinforced insulation

Vibration resistance

3 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)in operation|5 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)not in operation

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.89 cm

Package 1 width

1.27 cm

Package 1 length

3.452 cm

Package 1 weight

19.5 g
