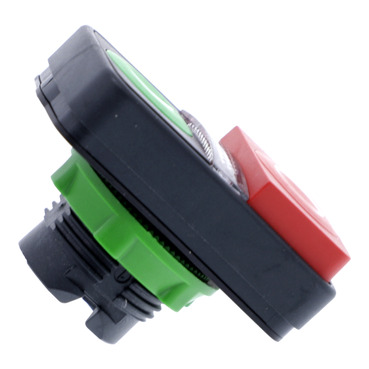

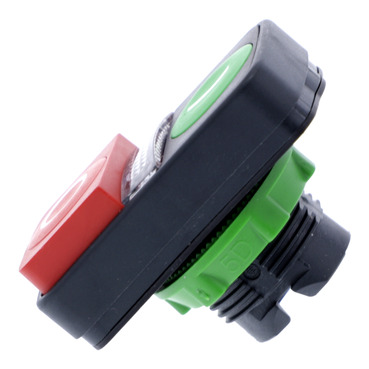

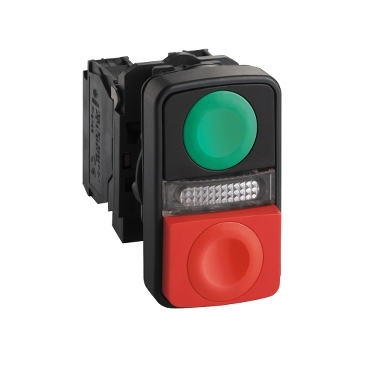

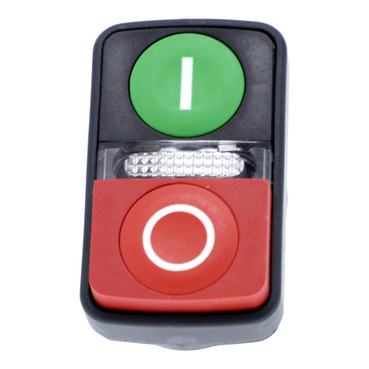

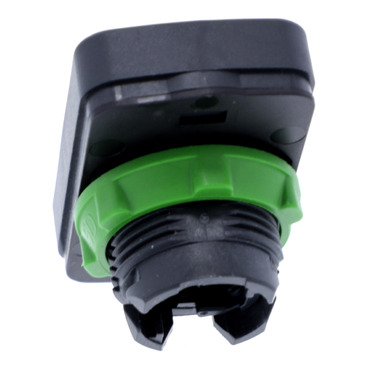

Harmony XB5, Illuminated double headed push button head, plastic, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O

Home ProductsIndustrialHarmonyIlluminated double headed push button head

Harmony XB5, Illuminated double headed push button head, plastic, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O

Item Number: ZB5AW7L3741

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5

Product or component type

head for illuminated double-headed push-button

Product compatibility

integral LED

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sale per indivisible quantity

1

Net weight

0.023 kg

Mechanical durability

1000000 cycles

Marking

I-O

Device presentation

basic sub-assemblies

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...70 °C

Ip degree of protection

IP66|IP69|IP69K

Ik degree of protection

IK05 conforming to IEC 50102

Standards

EN/IEC 60947-5-4|JIS C8201-5-1|EN/IEC 60947-1|UL 508|CSA C22.2 No 14|EN/IEC 60947-5-1|JIS C8201-1

Product certifications

LROS (Lloyds register of shipping)|UL listed|GL|CSA|DNV|BV

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2404014EN

Circularity profile

ENVEOLI2404014EN

Others

Package 1 bare product quantity

1

Device short name

ZB5

Bezel material

dark grey plastic

Head type

standard

Mounting diameter

22 mm

Shape of signaling unit head

rectangular

Type of operator

spring return

Operator profile

1 flush - 1 projecting push-buttons - 1 central pilot light

Operators description

green ''I'' - red ''O''

Cad overall width

30 mm

Cad overall height

50 mm

Cad overall depth

35 mm

Operator profile

green flush, I (white)|red projecting, O (white)

Main group

illum double head

Group of product

flush/proj illum marked

Station name

XALD 1 cut-out

Cap/operator or lens colour

green/red

Colour of marking

white/white

Compatibility code

ZB5

Customizable

no

Customizable

0

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED|M2 for <6 contacts using single and double blocks in front mounting with integral LED|M6 for <2 contacts using single blocks in front mounting with integral LED and transformer|M10 for <2 contacts using single blocks in front mounting with integral LED|MF1 for <2 contacts using single blocks in front mounting with integral LED|MR1 for <2 contacts using single blocks in rear mounting with integral LED

Electrical shock protection class

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.5 cm

Package 1 width

3.3 cm

Package 1 length

5.3 cm

Package 1 weight

26.0 g

Unit type of package 2

S03

Number of units in package 2

200

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

5.678 kg
Show all specifications
