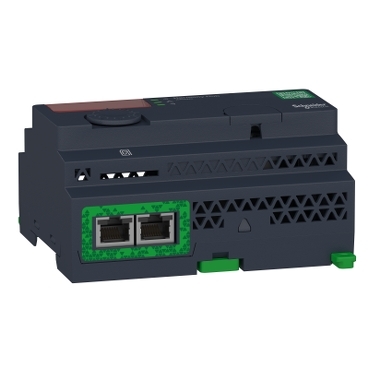

Harmony XB5R Harmony Hub wireless serial line gateway

Item Number: ZBRN2

1 PCE 0

Contact your Wholesaler for pricing

This harmony hub wireless/serial line gateway provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications (IP65)

Where To Buy

Datasheet

For ZBRN2

Download

Product Dimensions

Width122 mm

Height90 mm

Depth60 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480528491	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480528491	-

Specifications

Design

Range of product

Harmony

Product or component type

Harmony Hub wireless/Serial Line gateway

Physical

Function of module

Zigbee green power concentrator

Communication port protocol

Modbus client application

Transmission frequency

2405...2480 MHz

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715
mounting plate

Width

122 mm

Height

90 mm

Depth

60 mm

Net weight

0.27 kg

Integrated connection type

1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2...115.2 kbauds, 2 twisted shielded pairs

Product certifications

GOST
CE
UL
C-Tick
CSA
CCC

Standards

CSA C22.2 No 14
IEC 62311
IEC 61131-2
ETSI EN 300 440-2
ETSI EN 300 328
IEC 60950-1
UL 508

Ambient air temperature for storage

-40...70 °C

Relative humidity

90 % at -25...55 °C, without condensation conforming to ETSI EN 300 440...1

Ip degree of protection

IP20 (casing) conforming to IEC 60529
IP20 (terminals)

China rohs regulation

Environmental disclosure

ENVPEP101106EN

Circularity profile

ENVEOLI1103010EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

Package 1 bare product quantity

Device short name

ZBRN2

Product specific application

Wireless Schneider Electric devices ecosystem

Antenna type

integrated

Maximum sensing distance

100 m in free field
250 m if a relay antenna is located between the transmitter and Harmony Hub
60 m if an external antenna is connected to Harmony Hub
25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure

Response time

< 30 ms

Channels utilisation

<= 60 devices

[us] rated supply voltage

24...240 V AC/DC 50/60 Hz - 10...10 %

Immunity to microbreaks

10 ms

Maximum power consumption in w

4 W AC/DC

Breaking capacity

15 W

Breaking capacity

750 VA

Control circuit frequency

50...60 Hz +/- 10 %

Short-circuit protection

16 A GB2 circuit breaker

Operating position

any position

Electrical connection

1 conductor cable 0.2-4 mm² - AWG 24...AWG 12 - solid - without cable end conforming to IEC 60947-1
2 conductors cable 0.2-1.5 mm² - AWG 24...AWG 16 - solid - without cable end conforming to IEC 60947-1
1 conductor cable 0.2-0.75 mm² - AWG 24...AWG 14 - flexible - with cable end conforming to IEC 60947-1
2 conductors cable 0.2-2.5 mm² - AWG 24...AWG 18 - flexible - with cable end conforming to IEC 60947-1

Tightening torque

0.35...0.4 N.m conforming to IEC 60947...1
3.09...3.54 lbf.in conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Status led

1 LED green for power ON
1 LED yellow for communication network
5 LEDs red for function mode
1 LED green and yellow for reception signal

Rated short-duration power frequency withstand voltage

1.5 kV 50 Hz conforming to IEC 60947-5-1

[uimp] rated impulse withstand voltage

4 kV

Surge withstand

1 kV differential mode conforming to IEC 61000-4-5
2 kV common mode conforming to IEC 61000-4-5

Antenna gain

0 dBi

Data storage equipment

SD card

Topology

devices linked by daisy-chaining or tap junctions

Data format

7 or 8 bits, 1 or 2 stop bits

Parity

no
even
odd

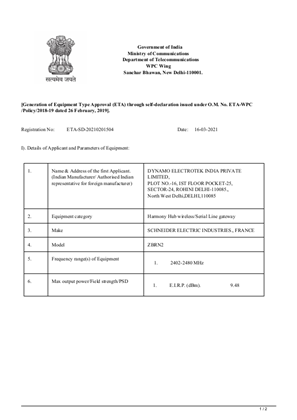

Radio agreement

ANATEL, type III conforming to ETSI EN 301 489-3

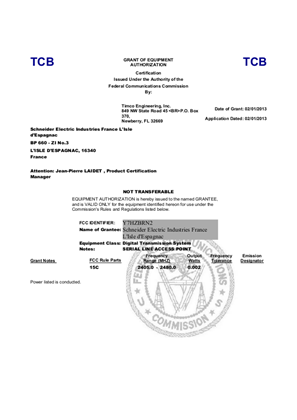

FCC, category 2 conforming to ETSI EN 300 440-1

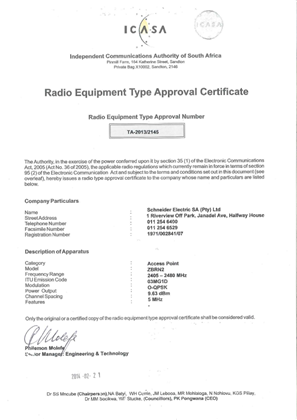

ICASA
RSS, category 1 conforming to ETSI EN 300 440-1
SRRC

Directives

2006/95/EC - low voltage directive
2004/108/EC - electromagnetic compatibility
1999/5/EC - R&TTE directive

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

+/- 3.5 mm (f = 5-14 Hz) conforming to IEC 60068-2-6
1 gn (f = 5-150 Hz) on panel mounting conforming to IEC 60068-2-6
2 gn (f = 8-150 Hz) on DIN rail conforming to IEC 60068-2-6

Shock resistance

10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27

Pollution degree

2 conforming to IEC 60664-1

Electromagnetic compatibility

1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5
1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5
immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11

Dielectric strength

3000 V between input and output AC
4250 V between input and output DC
1500 V between input and ground AC
2150 V between input and ground DC

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.300 cm

Package 1 width

9.600 cm

Package 1 length

13.000 cm

Package 1 weight

308.000 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.519 kg

Scip number

25b7f895-3732-43c8-9910-ef6005058640

Packaging without single use plastic

Yes

Packaging made with recycled cardboard

Yes

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

34.0667301968

Global warming ; total life cycle

34 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB5R Harmony Hub wireless serial line gateway

Item Number: ZBRN2

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

Product Brochures

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

End of Life Manual

Installation Instruction

Handout

Operating Manuals

Technical illustration

Application Notes

eTechPub

Declaration of Conformity

Certificates (MSDS)

Firmware

Software - Data Library

Harmony Hub ecosystem

Harmony Hub A masterpiece for a plug and play digital ecosystem

Harmony Hub A masterpiece for a plug and play digital ecosystem

Wireless access point serial link cloud connected enabler to monitor datas - 3D CAD

Harmony XB5R and XB4R Wireless and Batteryless Pushbuttons Catalog English 02/2021

Wireless and batteryless limit switches. XCMW range

Harmony Hub ecosystem

Harmony Hub A masterpiece for a plug and play digital ecosystem

Harmony Hub A masterpiece for a plug and play digital ecosystem

Wireless access point serial link cloud connected enabler to monitor datas - 3D CAD

Harmony XB5R and XB4R Wireless and Batteryless Pushbuttons Catalog English 02/2021

Wireless and batteryless limit switches. XCMW range

Wireless Push Button and Configurable Receiver

Wireless Push Button and Configurable Receiver

SWITCH TI TIM 20A 2P+RED LIGHT - Product End of Life Instructions

ZBRR. Programmable receivers, Product End-of-Life Instructions

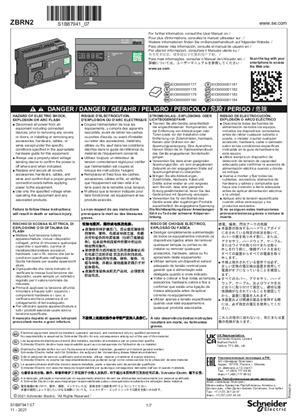

ZBRN2 Harmony Hub, Instruction Sheet (EN)
