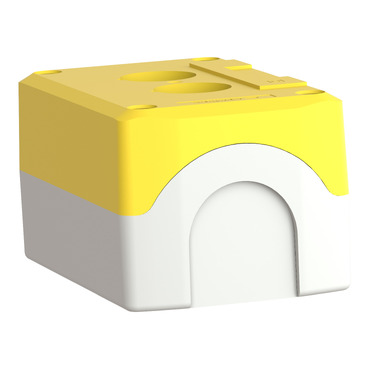

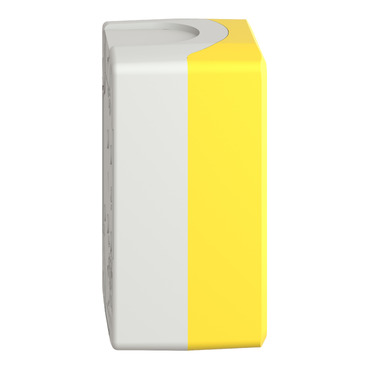

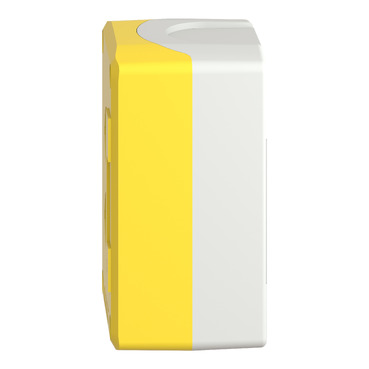

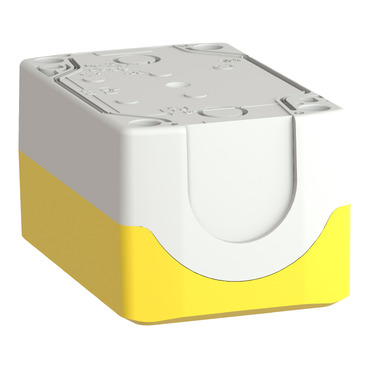

Harmony XALD XALK, Empty control station, plastic, yellow, 1 cut-out, unmarked, UL/CSA certified

Home ProductsIndustrialHarmonyEmpty control station

Harmony XALD XALK, Empty control station, plastic, yellow, 1 cut-out, unmarked, UL/CSA certified

Item Number: XALK02

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XALK

Product or component type

empty control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

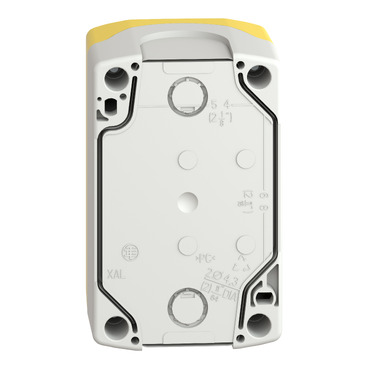

Cable entry

2 knock-outs for cable entry, clamping capacity: 14-14 mm|2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Net weight

0.193 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ik degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-5|UL 508|IEC 60947-1|IEC 60947-5-4|CSA C22.2 No 14|JIS C8201-5-1|IEC 60947-5-1|JIS C8201-1

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1806010EN

Circularity profile

ENVEOLI1806010EN

Material

Material

polycarbonate

Others

Package 1 bare product quantity

1

Device short name

XALK

Control station application

emergency switching off function|emergency stop function

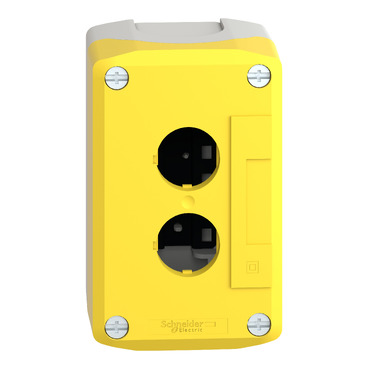

Number of cut-out

2 cut-outs

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

yellow (RAL 1021)

Assembly style

for customer assembly

Number of horizontal rows

1

Number of vertical rows

2

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting of block

front mounting|rear mounting

Main group

2 cut-outs

Group of product

standard yellow

Customizable

no

Customizable

0

Compatibility code

XALK

Protective treatment

TH

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

8.0 cm

Package 1 length

10.7 cm

Package 1 weight

187.0 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

7.134 kg
