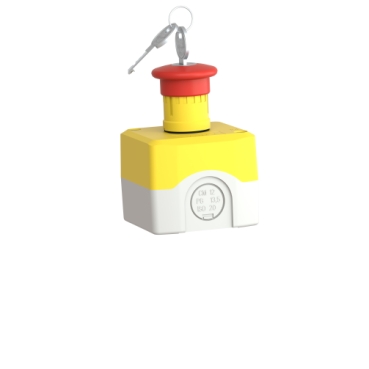

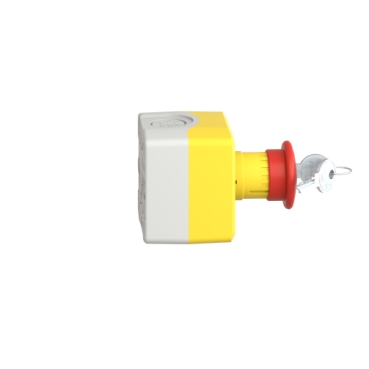

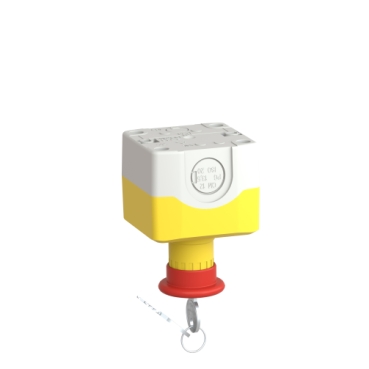

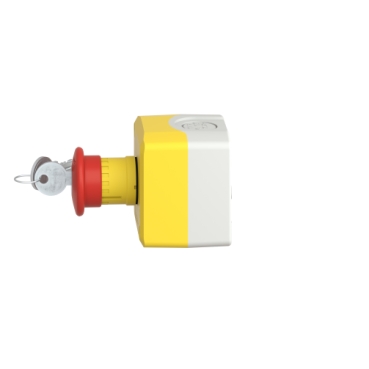

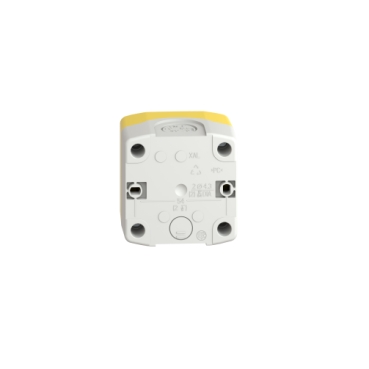

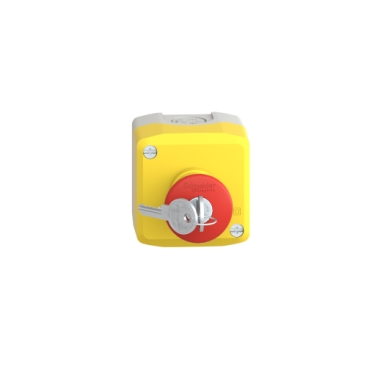

Harmony XALD XALK, Control station, plastic, yellow lid, 1 red mushroom push button 40mm, key release, 1NC

Item Number: XALK188

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119048095	-

Specifications

Design

Range of product

Harmony XALK

Product or component type

complete control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

1 knock-out for cable entry 0-14 mm|2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm

Net weight

0.188 kg

Mechanical durability

300000 cycles

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1|screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

[ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1|6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1|0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1|0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1|0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1|1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Ik degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-4|CSA C22.2 No 14|IEC 60204-1|IEC 60947-5-5|UL 508|IEC 60947-5-1|ISO 13850|IEC 60364-5-53|JIS C 4520|IEC 60947-1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1806010EN

Circularity profile

ENVEOLI1806010EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Material

polycarbonate

Contacts material

silver alloy (Ag/Ni)

Others

Package 1 bare product quantity

Device short name

XALK

Control station application

emergency switching off function|emergency stop function

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

yellow (RAL 1021)

Operator profile

1 mushroom head push-button

Operators description

red unmarked 1 NC

Reset

key release

Control station composition

1 mushroom head Ø 40 mm push-button, red 1 NC unmarked marking

Contact operation

slow-break

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Key number

455

Positive opening

with conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state)|4.3 mm (total travel)

Operating force

44 N NC + NO changing electrical state

Tightening torque

0.8...1.2 N.m conforming to IEC 60947...1

Shape of screw head

cross compatible with Philips no 1 screwdriver|cross compatible with pozidriv No 1 screwdriver|slotted compatible with flat Ø 4 mm screwdriver|slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Electrical reliability

λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4|λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4

Compatibility code

XALK

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.7 cm

Package 1 width

7.1 cm

Package 1 length

7.1 cm

Package 1 weight

189.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

7.993 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications
