dark grey station - green flush/red flush pushbuttons Ø22 and red pilot light / Green ''I'' 1 NO - red ''O'' 1 NC

Home ProductsIndustrialHarmonyControl station

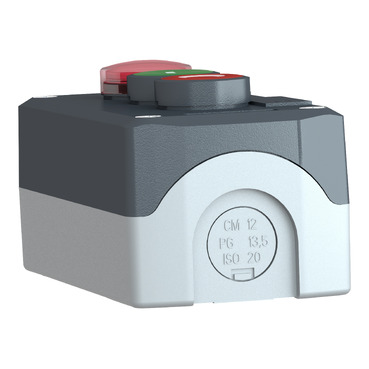

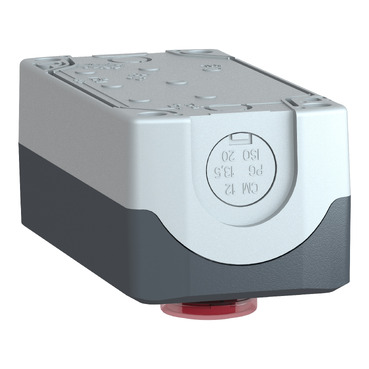

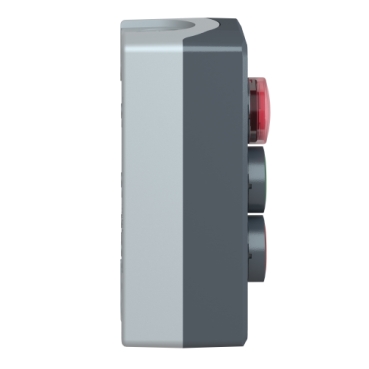

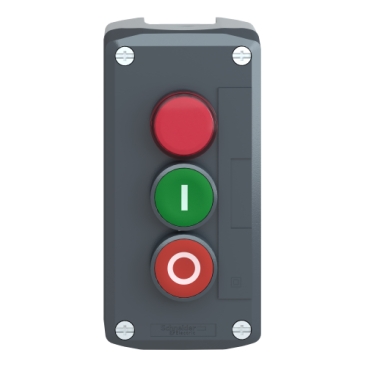

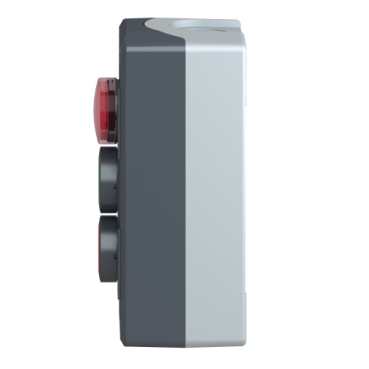

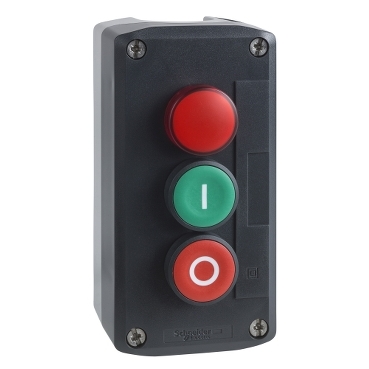

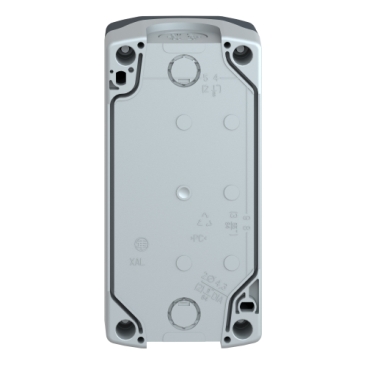

Harmony XALD XALK, Control station, plastic, dark grey, 1 red pilot light/1 green flush I/1 red flush O push buttons, Ø22 , spring return

Item Number: XALD363M

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110114515	-

Specifications

Design

Range of product

Harmony XALD

Product or component type

complete control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

2 knock-outs for cable entry, clamping capacity: 14-14 mm|2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm

Net weight

0.261 kg

Mechanical durability

10000000 cycles

Connections - terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1|screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

[ie] rated operational current

6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1|3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1|1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1|0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1|0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1|0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C|1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Ik degree of protection

IK05 conforming to EN 50102

Standards

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1806010EN

Circularity profile

ENVEOLI1806010EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Material

Material

polycarbonate

Contacts material

silver alloy (Ag/Ni)

Others

Package 1 bare product quantity

Device short name

XALD

Control station application

Start-Stop function

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

dark grey (RAL 7016)

Operator profile

2 flush push-buttons - 1 central pilot light

Operators description

green ''I'' 1 NO - red ''O'' 1 NC

Control station composition

1 flush push-button, green 1 NO I marking|1 flush push-button, red 1 NC O marking|1 pilot light

Marking location

marking on push-button

Contact operation

slow-break

Light source

integrated and protected LED

Light source colour

red

[us] rated supply voltage

230 V AC

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

white marking when green, red or black caps|black marking when white caps

Positive opening

with conforming to EN/IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state)|2.6 mm (NO changing electrical state)|4.3 mm (total travel)

Operating force

3.5 N NC changing electrical state|3.8 N NO changing electrical state

Tightening torque

0.8...1.2 N.m conforming to EN/IEC 60947...1

Shape of screw head

cross compatible with Philips no 1 screwdriver|cross compatible with pozidriv No 1 screwdriver|slotted compatible with flat Ø 4 mm screwdriver|slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[ith] conventional free air thermal current

10 A conforming to EN/IEC 60947-5-1

[ui] rated insulation voltage

600 V (pollution degree 3) conforming to EN/IEC 60947-1

[uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-1

Electrical reliability

λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4|λ < 10exp(-8) at 17 V, 5 mA conforming to EN/IEC 60947-5-4

Signalling type

steady

Supply voltage limits

195...264 V AC

Current consumption

14 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Compatibility code

XALD

Protective treatment

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Vibration resistance

5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27|50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2|8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

class B conforming to IEC 55011

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.1 cm

Package 1 width

9.8 cm

Package 1 length

14.1 cm

Package 1 weight

289 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

7.713 kg

Unit type of package 3

P06

Number of units in package 3

200

Package 3 height

77 cm

Package 3 width

60 cm

Package 3 length

80 cm

VERSION

7.0

DATE

12 Jan 2022

REVISION

7.0
