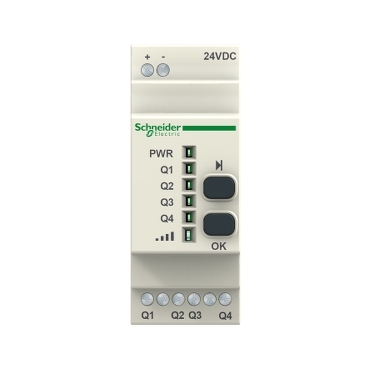

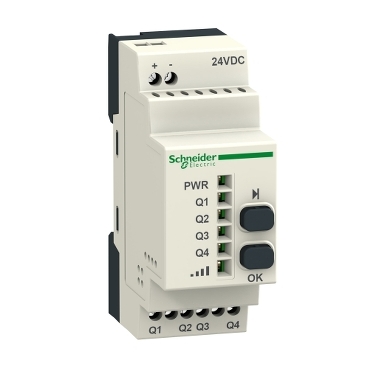

Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC

Item Number: ZBRRC

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height108 mm

Depth75 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480334719	-

Specifications

Design

Range of product

Harmony

Product or component type

programmable receiver

Warranty

18 months

Physical

Function of module

monostable

Transmission frequency

2405 MHz

Communication port protocol

Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715|mounting plate

Number of channels

Width

36 mm

Height

108 mm

Depth

75 mm

Net weight

0.13 kg

Standards

IEC 60947-5-1

Product certifications

CCC|CSA|GOST|C-Tick|UL

Marking

Ambient air temperature for storage

-40...70 °C

Relative humidity

90 % at -20...55 °C, without condensation conforming to ETSI EN 300 440...1

Ip degree of protection

IP20 (casing) conforming to IEC 60529|IP20 (terminals)

Insulation resistance

> 500 MOhm at 500 V DC conforming to NF C 20-030

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP101106EN

Circularity profile

ENVEOLI1103010EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Device short name

ZBRRC

Product specific application

interface to PLC

Reset time

2 ms time delay

Level or class

5M00G7W

Antenna type

omnidirectional

Output type

transistor PNP

Output contacts

4 PNP

Time delay range

0.5 s (tolerance: - 15...15 %)

Maximum switching current

0.2 mA DC

Minimum switching current

10 mA at 5 V DC

[us] rated supply voltage

24 V DC - 15...20 %

Maximum voltage drop

<2 V DC at 2 A

Maximum sensing distance

100 m in free field|25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure|40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Response time

< 30 ms after transmitter clicks

Utilisation category

DC-13 conforming to IEC 60947-5-1

Maximum power consumption in va

20 VA DC

Maximum power consumption in w

20 W DC

Breaking capacity

4.8 W (per output)

Short-circuit protection

0.4 A fuse type fast blow

Operating position

any position without derating

Electrical connection

1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1|2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1|1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1|2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1

Tightening torque

0.5...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Status led

1 LED green for power ON|1 LED green and yellow for reception signal|4 LEDs green for relay ON

Rated short-duration power frequency withstand voltage

1 kV 50 Hz conforming to IEC 60947-5-1

[uimp] rated impulse withstand voltage

0.8 kV

Surge withstand

0.5 kV differential mode conforming to IEC 61000-4-5|1 kV common mode conforming to IEC 61000-4-5

Max power consumption in w

1 mW

Modulation technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

[us] rated supply voltage

24 V

Radio agreement

Vibration resistance

+/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6|2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6

Shock resistance

10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27

Pollution degree

2 conforming to IEC 60664-1

Overvoltage category

III conforming to IEC 60664-1

[ui] rated insulation voltage

60 V conforming to IEC 60664-1

Electromagnetic compatibility

immunity for industrial environments conforming to IEC 61000-6-2|conducted and radiated emissions class B conforming to CISPR 22|electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2|electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2|susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3|susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3|electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4|conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6|radiated emission conforming to ETSI EN 300 440-1|conducted emission conforming to EN 300-489-1|conducted emission conforming to ETSI EN 300 489-3|radiated emission conforming to ETSI EN 300 440-2|electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4|1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5|1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5|immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.6 cm

Package 1 width

7.9 cm

Package 1 length

9.6 cm

Package 1 weight

122.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

8.498 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC

Item Number: ZBRRC

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

End of Life Manual

Handout

Operating Manuals

System User Guide

Technical illustration

Application Notes

Declaration of Conformity

Certificates (MSDS)

eTechPub

Receiver SPS advanced DC 4 PNP - 3D CAD

Harmony Hub A masterpiece for a plug and play digital ecosystem

Telemecanique Sensors: The essential guide of detection

Wireless and batteryless limit switches. XCMW range

Harmony XB5R and XB4R Wireless and Batteryless Pushbuttons Catalog English 02/2021

ZBRR. Receiver 2 relay or 4 PNP outputs, Instruction Sheet

XCMW... Wireless / Batteryless limit switch, Instruction Sheet

XCKW... Wireless / Batteryless limit switch, Instruction Sheet

Wireless / Batteryless limit switch

PEP Harmony XB5R

SWITCH TI TIM 20A 2P+RED LIGHT - Product End of Life Instructions

ZBRR. Programmable receivers, Product End-of-Life Instructions

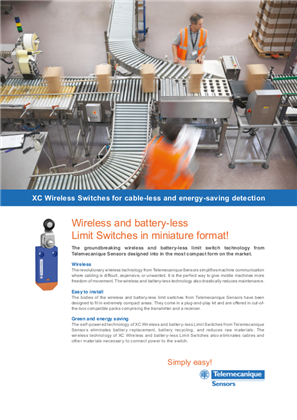

XC Wireless Switches for cable-less and energy-saving detection

Harmony XB5R Expert Instruction Sheet

Compact Hardwired Logic Controller M241, System User Guide

Technical Illustration - Wiring

Technical Illustration - Dimensions

Harmony® XB5R, Application Manual

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

XB4R XB5R Wireless & Batteryless pushbuttons equipments

CSA-Certificate-wireless device data exchanger ZBRN1, ZBRN2, ZBRRA, ZBRRC, ZBRRD, and ZBRRH

UL-Certificate-XB4R XB5R Wireless & Batteryless pushbuttons

XB4R XB5R Wireless & Batteryless pushbuttons

IECEE CB - SCHEME-Certificate-Solo range ZBRN ZBRA ZBRR

IECEE CB SCHEME Certificate

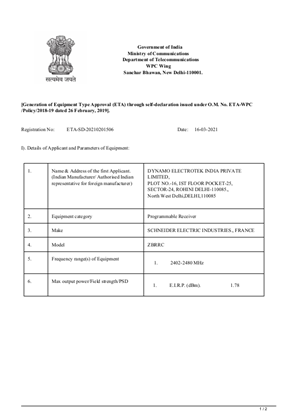

ETA India_ZBRRC Wireless and Batteryless pushbuttons
