Easy56 Enclosure

Item Number: EY56E3

1 PCE 0

Retail

$83

RRP (Inc. GST)

Where To Buy

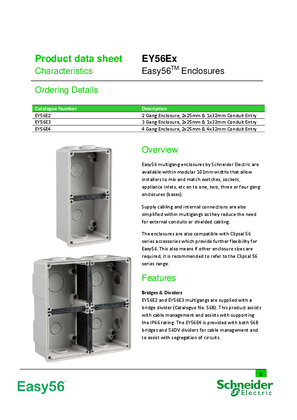

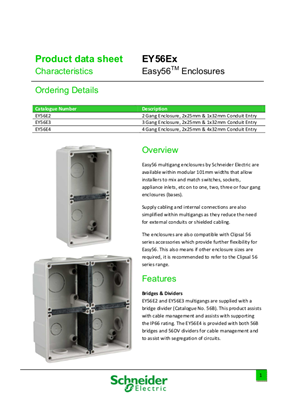

Datasheet

For EY56E3

Download

Product Dimensions

Width101 mm

Height294 mm

Depth63 mm

See full specifications

Barcode

Qty	EAN	Colour
1	9311554782566	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		9311554782566	-

Specifications

Design

Product or component type

back box

Market segment

industry
small commercial
utility

Physical

Device mounting

surface

Mounting mode

wall-mounted

Net weight

0.515 kg

Height

294 mm

Width

101 mm

Depth

63 mm

Standards

AS 3100

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1508013EN

Circularity profile

N/A

Material

Material

PVC (polyvinyl chloride): housing

Others

Packaging without single use plastic

Packaging made with recycled cardboard

Yes

Package 1 bare product quantity

Product name

Easy56

Device short name

EY56E3

Base dimension

294 x 101 mm

Targeted country

Australia
New Zealand

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.5 cm

Package 1 width

10.5 cm

Package 1 length

30.5 cm

Package 1 weight

540.0 g

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 478.5 KB

Colour ()
