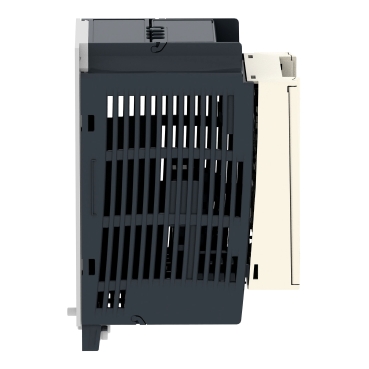

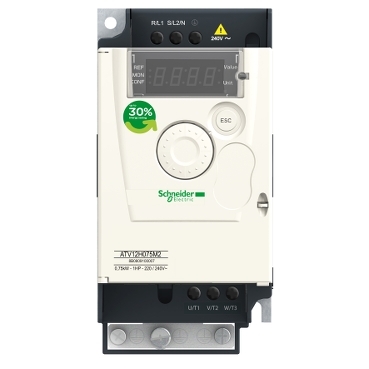

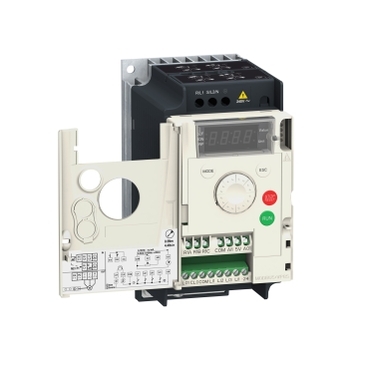

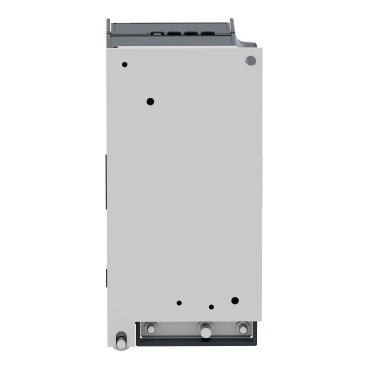

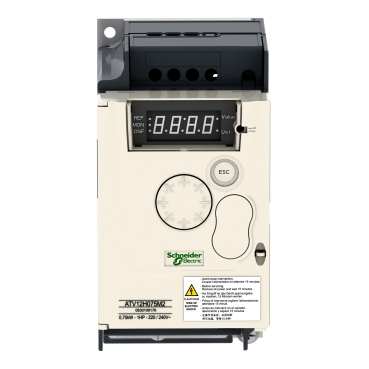

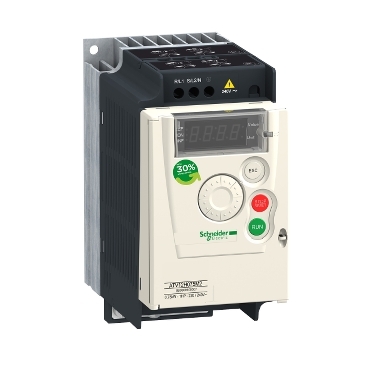

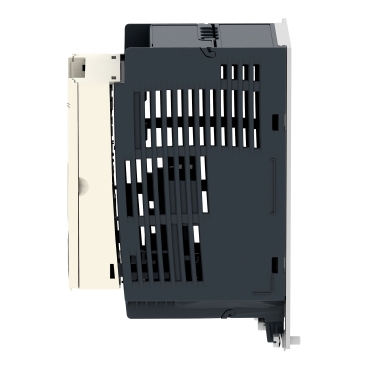

Altivar 12 Variable speed drive ATV12

Item Number: ATV12H075M2

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For ATV12H075M2

Download

Product Dimensions

Width72 mm

Height143 mm

Depth131.2 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480071072	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480071072	-

Specifications

Design

Range of product

Altivar 12

Product or component type

variable speed drive

Warranty

18 months

Physical

Mounting mode

cabinet mount

Communication port protocol

Modbus

Ip degree of protection

IP20

Connector type

1 RJ45

Protection type

line supply overvoltage
line supply undervoltage
overcurrent between output phases and earth
overheating protection
short-circuit between motor phases
against input phase loss in three-phase
thermal motor protection via the drive by continuous calculation of I²t

Quantity per set

set of 1

Width

72 mm

Height

143 mm

Depth

131.2 mm

Net weight

0.8 kg

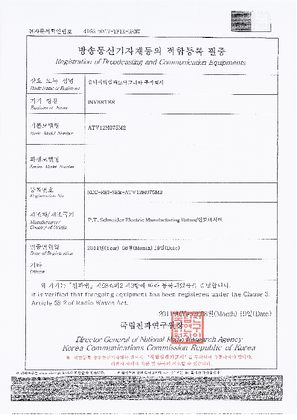

Product certifications

NOM
CSA
C-Tick
UL
GOST
RCM
KC

Marking

Standards

UL 508C
UL 618000-5-1
IEC 61800-5-1
IEC 61800-3

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3
5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C without derating
40...60 °C with current derating 2.2 % per °C

Ambient air temperature for storage

-25...70 °C

Ambient air temperature for operation

-10...60 °C

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

End of commercialization (planned, announced or effective)

Substance regulation data deliverable

Yes

Package 2 bare product quantity

Package 1 bare product quantity

Product specific application

simple machine

Design of frequency changer

U converter

Supply frequency

50/60 Hz +/- 5 %

[us] rated supply voltage

200...240 V - 15...10 %

[us] rated supply voltage

200...240 V

Relative symmetric mains voltage tolerance

10 %

Nominal output current

4.2 A

Number of input phases

Number of output phases

Motor power kw

0.75 kW

Motor power hp

1 hp

Emc filter

integrated

Motor power hp

1 hp

Discrete input number

Discrete output number

Analogue input number

Analogue output number

Relay output number

Number of inputs, bidirectional, not potential-free

Number of inputs, potential-free

Computer port

true

Optical interface present

false

Physical interface

2-wire RS 485

Continuous output current

4.2 A at 4 kHz

Method of access

server Modbus serial

Speed drive output frequency

0.5...400 Hz

Speed range

1...20

Sampling duration

20 ms, tolerance +/- 1 ms for logic input
10 ms for analogue input

Linearity error

+/- 0.3 % of maximum value for analogue input

Frequency resolution

analog input: converter A/D, 10 bits
display unit: 0.1 Hz

Time constant

20 ms +/- 1 ms for reference change

Transmission rate

9.6 kbit/s
19.2 kbit/s
38.4 kbit/s

Transmission frame

RTU

Number of addresses

1...247

Data format

8 bits, configurable odd, even or no parity

Communication service

read holding registers (03) 29 words
write single register (06) 29 words
write multiple registers (16) 27 words
read/write multiple registers (23) 4/4 words
read device identification (43)

Type of polarization

no impedance

Number of hw interfaces parallel

Number of hw interfaces industrial ethernet

Number of hw interfaces profinet

Number of hw interfaces serial rs232

Number of hw interfaces serial rs422

Number of hw interfaces serial rs485

Number of hw interfaces serial tty

Number of hw interfaces usb

Number of hw interfaces other

Supporting protocol for as-interface safety at work

false

Supporting protocol for asi

false

Supporting protocol for suconet

false

Supporting protocol for bacnet

false

Supporting protocol for can

false

Supporting protocol for data-highway

false

Supporting protocol for devicenet

false

Supporting protocol for devicenet safety

false

Supporting protocol for ethernet/ip

false

Supporting protocol for foundation fieldbus

false

Supporting protocol for interbus

false

Supporting protocol for interbus-safety

false

Supporting protocol for knx

false

Supporting protocol for lon

false

Supporting protocol for modbus

true

Supporting protocol for other bus systems

false

Supporting protocol for profibus

false

Supporting protocol for profinet cba

false

Supporting protocol for profinet io

false

Supporting protocol for profisafe

false

Supporting protocol for safetybus p

false

Supporting protocol for sercos

false

Supporting protocol for tcp/ip

false

4 quadrant operation possible

false

Asynchronous motor control profile

quadratic voltage/frequency ratio
voltage/frequency ratio (V/f)
sensorless flux vector control

Maximum output frequency

4 kHz

Transient overtorque

150...170 % of nominal motor torque depending on drive rating and type of motor

Acceleration and deceleration ramps

linear from 0 to 999.9 s
U
S

Motor slip compensation

preset in factory
adjustable

Switching frequency

2...16 kHz adjustable
4...16 kHz with derating factor

Nominal switching frequency

4 kHz

Braking to standstill

by DC injection

Brake chopper integrated

false

Maximum associated fuse rating

12.5 A

Line current

10.2 A at 100 V (heavy duty)
8.5 A at 120 V (heavy duty)

Maximum output voltage

240 V

Nominal output power

750.0 W

Apparent power

2.0 kVA at 240 V (heavy duty)

Maximum transient current

6.3 A during 60 s (heavy duty)
6.9 A during 2 s (heavy duty)

Capacity of dc link

780.0 µF

Network frequency

50...60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line isc

1 kA

1 phase low current possible

false

Base load current at high overload

4.2 A

Application in domestic and commercial area permitted

false

Application in industrial area permitted

true

Emc limit value (complied)

true

Power loss per device current dependent

44.0 W

Power loss static current independent

8.0 W

Power dissipation in w

natural: 44.0 W

Housing material

plastic

With safety function safely limited speed (sls)

false

With safety function safe brake management (sbc/sbt)

false

With safety function safe operating stop (sos)

false

With safety function safe position (sp)

false

With safety function safe programmable logic

false

With safety function safe speed monitor (ssm)

false

With safety function safe stop 1 (ss1)

false

With sft fct safe stop 2 (ss2)

false

With safety function safe torque off (sto)

false

With safety function safely limited position (slp)

false

With safety function safe direction (sdi)

false

Operating element present

true

Tightening torque

0.8 N.m

Insulation

electrical between power and control

Operating altitude

> 1000...2000 m with current derating 1 % per 100 m
<= 1000 m without derating

Operating position

vertical +/- 10 degree

Assembly style

with heat sink

Electromagnetic compatibility

electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
immunity to conducted disturbances level 3 conforming to IEC 61000-4-6
radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
surge immunity test level 3 conforming to IEC 61000-4-5
voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Environmental class (during operation)

class 3C3 according to IEC 60721-3-3
class 3S2 according to IEC 60721-3-3

Environmental class (during storage)

class 1C3 according to IEC 60721-3-1
class 1S2 according to IEC 60721-3-1

Environmental class (during transport)

class 2C3 according to IEC 60721-3-2
class 2S1 according to IEC 60721-3-2

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum acceleration under shock load (during storage)

150 m/s² at 11 ms

Maximum acceleration under shock load (during transport)

150 m/s² at 11 ms

Maximum acceleration under vibratory load (during storage)

10 m/s² at 13...200 Hz

Maximum acceleration under vibratory load (during transport)

10 m/s² at 13...200 Hz

Maximum acceleration under vibrational stress (during operation)

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load (during storage)

1.5 mm at 2...13 Hz

Maximum deflection under vibratory load (during transport)

1.5 mm at 2...13 Hz

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Overvoltage category

class III

Regulation loop

adjustable PID regulator

Electromagnetic emission

radiated emissions environment 1 category C2 conforming to IEC 61800-3 2...16 kHz shielded motor cable
conducted emissions with integrated EMC filter environment 1 category C1 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m
conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2...12 kHz shielded motor cable <5 m
conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m
conducted emissions with additional EMC filter environment 1 category C1 conforming to IEC 61800-3 4...12 kHz shielded motor cable <20 m
conducted emissions with additional EMC filter environment 1 category C2 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m
conducted emissions with additional EMC filter environment 2 category C3 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m

Vibration resistance

1 gn (f = 13-200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6

Shock resistance

15 gn conforming to IEC 60068-2-27 for 11 ms

Noise level

0 dB

Pollution degree

Ambient air transport temperature

-25...70 °C

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

11.500 cm

Package 1 width

18.500 cm

Package 1 length

19.500 cm

Package 1 weight

1.110 kg

Unit type of package 2

S06

Number of units in package 2

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

63.085 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

488b1fd0-df04-41cb-85a8-34a5a8230847

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Yes

Product contributes to saved and avoided emissions

Yes

Removable battery

N/A

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Altivar 12 Variable speed drive ATV12

Item Number: ATV12H075M2

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Operating Manuals

eTechPub

Declaration of Conformity

Certificates (MSDS)

Software - Data Library

Variable speed drive ATV12 - 1f/3f- 200V Heat sink - 3D CAD

Altivar 12 Variable speed drives

1) ATV12 Getting Started

ATV12 Variable Speed Drives Extended Short Circuit Ratings - Instructions

1) ATV12 Quick Start annex - SCCR

Instruction sheet - substitution ATV11-ATV12

Variable speed drive ATV12 - 1f/3f- 200V Heat sink - 3D CAD

Altivar 12 Variable speed drives

1) ATV12 Getting Started

ATV12 Variable Speed Drives Extended Short Circuit Ratings - Instructions

1) ATV12 Quick Start annex - SCCR

Instruction sheet - substitution ATV11-ATV12

ATV12 user manual

ATV12 Modbus Communication Manual

Altistart 22 (EPDS)

ATV12 UK DECLARATION

ATV12 EU DECLARATION

ATV12_SE_SHORT_CIRCUIT_PROTEC.

ATV12_CSA_CERTIFICATE

ATV12H075M2_KC_CERTIFICATE

ATV12 UL CERTIFICATE

SoMove (FDT Standalone)

Frequently Asked Questions

What is part number VW3A4416?

Related products

TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control

Recently viewed

Altivar 12, Variable speed drive ATV12, 0.75kW, 1hp, 200..240V, 1ph, with heat sink

Altivar 12, Variable speed drive ATV12, 0.75kW, 1hp, 200..240V, 1ph, with heat sink
