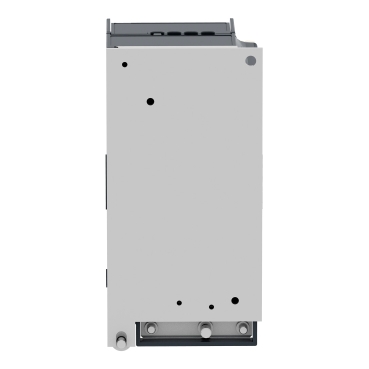

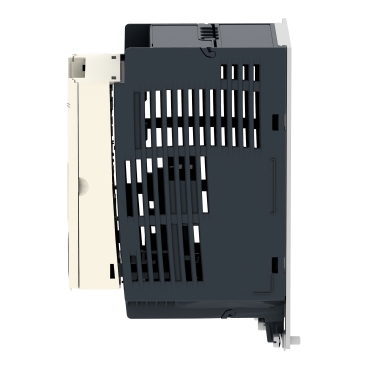

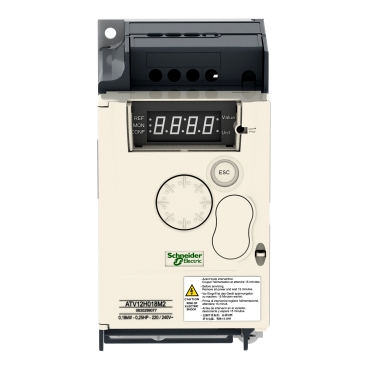

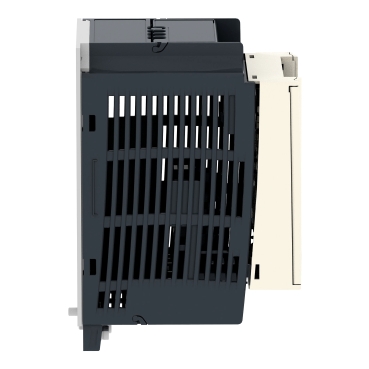

Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph

Item Number: ATV12H018M2

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width72 mm

Height143 mm

Depth102.2 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480071089	-

Specifications

Design

Range of product

Altivar 12

Product or component type

variable speed drive

Warranty

18 months

Physical

Mounting mode

cabinet mount

Communication port protocol

Modbus

Ip degree of protection

IP20

Connector type

1 RJ45

Protection type

Quantity per set

set of 1

Width

72 mm

Height

143 mm

Depth

102.2 mm

Net weight

0.7 kg

Product certifications

NOM|CSA|C-Tick|UL|GOST|RCM|KC

Marking

Standards

UL 508C|UL 618000-5-1|IEC 61800-5-1|IEC 61800-3

Ambient air temperature for operation

-10...60 °C

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C without derating|40...60 °C with current derating 2.2 % per °C

Ambient air temperature for storage

-25...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

End of commercialization (planned, announced or effective)

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Package 2 bare product quantity

Product specific application

simple machine

Design of frequency changer

U converter

Supply frequency

50/60 Hz +/- 5 %

[us] rated supply voltage

200...240 V - 15...10 %

[us] rated supply voltage

200...240 V

Relative symmetric mains voltage tolerance

10 %

Nominal output current

1.4 A

Number of input phases

Number of output phases

Motor power hp

0.25 hp

Motor power kw

0.18 kW

Motor power hp

0.25 hp

Emc filter

integrated

Discrete input number

Discrete output number

Analogue input number

Analogue output number

Relay output number

Number of inputs, bidirectional, not potential-free

Number of inputs, potential-free

Computer port

true

Optical interface present

false

Physical interface

2-wire RS 485

Continuous output current

1.4 A at 4 kHz

Method of access

server Modbus serial

Speed drive output frequency

0.5...400 Hz

Speed range

1...20

Sampling duration

20 ms, tolerance +/- 1 ms for logic input|10 ms for analogue input

Linearity error

+/- 0.3 % of maximum value for analogue input

Frequency resolution

analog input: converter A/D, 10 bits|display unit: 0.1 Hz

Time constant

20 ms +/- 1 ms for reference change

Transmission rate

9.6 kbit/s|19.2 kbit/s|38.4 kbit/s

Transmission frame

RTU

Number of addresses

1...247

Data format

8 bits, configurable odd, even or no parity

Communication service

read holding registers (03) 29 words|write single register (06) 29 words|write multiple registers (16) 27 words|read/write multiple registers (23) 4/4 words|read device identification (43)

Type of polarization

no impedance

Number of hw interfaces parallel

Number of hw interfaces industrial ethernet

Number of hw interfaces profinet

Number of hw interfaces serial rs232

Number of hw interfaces serial rs422

Number of hw interfaces serial rs485

Number of hw interfaces serial tty

Number of hw interfaces usb

Number of hw interfaces other

Supporting protocol for as-interface safety at work

false

Supporting protocol for asi

false

Supporting protocol for suconet

false

Supporting protocol for bacnet

false

Supporting protocol for can

false

Supporting protocol for data-highway

false

Supporting protocol for devicenet

false

Supporting protocol for devicenet safety

false

Supporting protocol for ethernet/ip

false

Supporting protocol for foundation fieldbus

false

Supporting protocol for interbus

false

Supporting protocol for interbus-safety

false

Supporting protocol for knx

false

Supporting protocol for lon

false

Supporting protocol for modbus

true

Supporting protocol for other bus systems

false

Supporting protocol for profibus

false

Supporting protocol for profinet cba

false

Supporting protocol for profinet io

false

Supporting protocol for profisafe

false

Supporting protocol for safetybus p

false

Supporting protocol for sercos

false

Supporting protocol for tcp/ip

false

4 quadrant operation possible

false

Asynchronous motor control profile

voltage/frequency ratio (V/f)|sensorless flux vector control|quadratic voltage/frequency ratio

Maximum output frequency

4 kHz

Transient overtorque

150...170 % of nominal motor torque depending on drive rating and type of motor

Acceleration and deceleration ramps

U|linear from 0 to 999.9 s|S

Motor slip compensation

preset in factory|adjustable

Switching frequency

2...16 kHz adjustable|4...16 kHz with derating factor

Nominal switching frequency

4 kHz

Braking to standstill

by DC injection

Brake chopper integrated

false

Maximum associated fuse rating

12.5 A

Line current

3.4 A at 100 V (heavy duty)|2.8 A at 120 V (heavy duty)

Maximum output voltage

240 V

Nominal output power

180.0 W

Apparent power

0.7 kVA at 240 V (heavy duty)

Maximum transient current

2.1 A during 60 s (heavy duty)|2.3 A during 2 s (heavy duty)

Capacity of dc link

220.0 µF

Network frequency

50...60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line isc

1 kA

1 phase low current possible

false

Base load current at high overload

1.4 A

Application in domestic and commercial area permitted

false

Application in industrial area permitted

true

Emc limit value (complied)

true

Power loss per device current dependent

18.0 W

Power loss static current independent

8.0 W

Power dissipation in w

natural: 18.0 W

Housing material

plastic

With safety function safely limited speed (sls)

false

With safety function safe brake management (sbc/sbt)

false

With safety function safe operating stop (sos)

false

With safety function safe position (sp)

false

With safety function safe programmable logic

false

With safety function safe speed monitor (ssm)

false

With safety function safe stop 1 (ss1)

false

With sft fct safe stop 2 (ss2)

false

With safety function safe torque off (sto)

false

With safety function safely limited position (slp)

false

With safety function safe direction (sdi)

false

Operating element present

true

Tightening torque

0.8 N.m

Insulation

electrical between power and control

Operating altitude

> 1000...2000 m with current derating 1 % per 100 m|<= 1000 m without derating

Operating position

vertical +/- 10 degree

Assembly style

on base plate

Electromagnetic compatibility

electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2|immunity to conducted disturbances level 3 conforming to IEC 61000-4-6|radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3|surge immunity test level 3 conforming to IEC 61000-4-5|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Environmental class (during operation)

class 3C3 according to IEC 60721-3-3|class 3S2 according to IEC 60721-3-3

Environmental class (during storage)

class 1C3 according to IEC 60721-3-1|class 1S2 according to IEC 60721-3-1

Environmental class (during transport)

class 2C3 according to IEC 60721-3-2|class 2S1 according to IEC 60721-3-2

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum acceleration under shock load (during storage)

150 m/s² at 11 ms

Maximum acceleration under shock load (during transport)

150 m/s² at 11 ms

Maximum acceleration under vibratory load (during storage)

10 m/s² at 13...200 Hz

Maximum acceleration under vibratory load (during transport)

10 m/s² at 13...200 Hz

Maximum acceleration under vibrational stress (during operation)

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load (during storage)

1.5 mm at 2...13 Hz

Maximum deflection under vibratory load (during transport)

1.5 mm at 2...13 Hz

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Overvoltage category

class III

Regulation loop

adjustable PID regulator

Electromagnetic emission

radiated emissions environment 1 category C2 conforming to IEC 61800-3 2...16 kHz shielded motor cable|conducted emissions with integrated EMC filter environment 1 category C1 conforming to IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m|conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2...12 kHz shielded motor cable <5 m|conducted emissions with integrated EMC filter environment 1 category C2 conforming to IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m|conducted emissions with additional EMC filter environment 1 category C1 conforming to IEC 61800-3 4...12 kHz shielded motor cable <20 m|conducted emissions with additional EMC filter environment 1 category C2 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m|conducted emissions with additional EMC filter environment 2 category C3 conforming to IEC 61800-3 4...12 kHz shielded motor cable <50 m

Vibration resistance

1 gn (f = 13-200 Hz) conforming to IEC 60068-2-6|1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to IEC 60068-2-6

Shock resistance

15 gn conforming to IEC 60068-2-27 for 11 ms

Noise level

0 dB

Pollution degree

Ambient air transport temperature

-25...70 °C

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

11.500 cm

Package 1 width

18.600 cm

Package 1 length

19.500 cm

Package 1 weight

887.000 g

Unit type of package 2

S06

Number of units in package 2

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

VERSION

2.24

DATE

21 Aug 2024

REVISION

2.24

DOWNLOAD (ZIP) 370.3 MB

Frequently Asked Questions

hide show

What is a good source of information for the ATV12?

Issue:
Looking for ATV12 information

Product Line:
Altivar 12

Environment:
All models and serial numbers

Cause:
Information is needed for installation and programming.

Resolution:
User manual is document number BBV28581. This manual includes instructions for installing the drive, connecting the control wiring, programming and troubleshooting.
https://www.schneider-electric.us/en/download/document/BBV28581/

Do we have variable speed drives for single-phase motor?

Our variable speed drives are designed to control three-phase motors only.

However if the motor is replaced with a 3 phase 240V motor, a single phase 240V input inverter can be used.
e.g. ATV12 is a single phase inverter for use with three phase 230v motors.

This single phase in to three phase output function is available on the ATV12 and ATV320 drives up to the maximum rating of 2.2kw

What is the ambient temperature operating range of the ATV12 series drives?

Issue:
ATV12 ambient temperature operating range

Product Line:
ATV12 series drives.

Environment:
All models, All serial numbers.

Cause:
N/A

Resolution:

Ambient Air Temperature**

ATV12H018F1, ATV12H037F1
ATV12H018M2...H075M2
ATV12H018M3...H075M3
ATV12P models
Operation -10C to +40C without derating. Up to +60C with derating. Remove the blanking cover and de-rate at 2% per degree above 40C.

ATV12H075F1
ATV12HU15M2, HU22M2
ATV12HU15M3...HU40M3
Operation -10C to +50C without derating. Up to +60C with derating. Remove the blanking cover and de-rate at 2% per degree above 50C.

Storage temperature for all units is -25C to +70C

** UL ratings are up to 40C only. Higher temperature ratings listed above are for non-UL listed applications only.

What is part number VW3A4416?

Issue:
What is part number for an EMC filter for the Altivar 12 drives?

Product Line:
Altivar 12, ATV12, ATV11

Environment:
ATV12H018F1
ATV12H037F1
ATV12H018M2
ATV12H037M2
ATV12H055M2
ATV12H075M2
ATV12P037F1
ATV12P037M2
ATV12P055M2
ATV12P075M2

Cause:
EMC Filter

Resolution:
Part number VW3A4416 is an externally mounted EMC filter that will fit these drives.

Colour ()

Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph

Item Number: ATV12H018M2

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Operating Manuals

Declaration of Conformity

Certificates (MSDS)

eTechPub

Software - Data Library

Variable speed drive ATV12 - 1f / 3f- 100V/200V Heat sink / Base plate - 3D CAD

Altivar 12 Variable speed drives

1) ATV12 Getting Started

ATV12 Variable Speed Drives Extended Short Circuit Ratings - Instructions

1) ATV12 Quick Start annex - SCCR

Instruction sheet - Braking Resistor: VW3A7723, VW3A7724, VW3A7725

Instruction sheet substitution ATV11-ATV12

ALTIVAR 12 - 0.18-0.37 kW, Product End-of-Life Instructions

ATV12 user manual

ATV12 Modbus Communication Manual

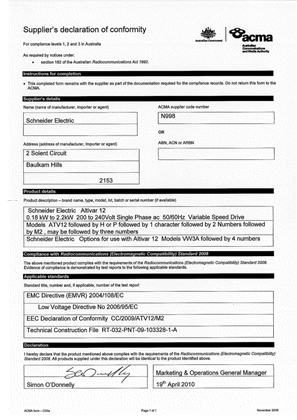

ATV12 UK DECLARATION

ATV12 EU DECLARATION

ATV12 C-TICK CERTIFICATE

ATV12_SE_SHORT_CIRCUIT_PROTEC.

ATV12_CSA_CERTIFICATE

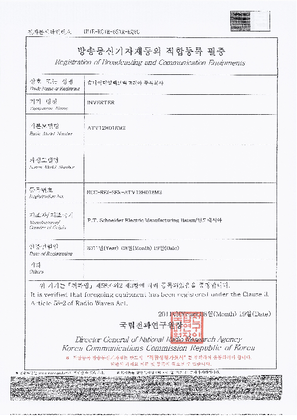

ATV12H018M2_KC_CERTIFICATE

ATV12 UL CERTIFICATE

Altistart 22 (EPDS)

SoMove (FDT Standalone)

Frequently Asked Questions

What is a good source of information for the ATV12?

Do we have variable speed drives for single-phase motor?

What is the ambient temperature operating range of the ATV12 series drives?

What is part number VW3A4416?

Related products

TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control

TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control

Recently viewed

Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph

Altivar 12, Variable speed drive ATV12, 0.18kW, 0.25hp, 200..240V, 1ph
