Altistart 01 Soft starter for asynchronous motor

Item Number: ATSU01N232LT

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For ATSU01N232LT

Download

Product Dimensions

Width45 mm

Height314 mm

Depth170 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3389110667127	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389110667127	-

Specifications

Design

Range of product

Altistart U01 and TeSys U

Product or component type

soft starter

Product destination

asynchronous motors

Warranty

18 months

Physical

[ue] rated operational voltage

400 V 15 kW
230 V 7.5 kW
230 V 10 hp
460 V 20 hp

Function available

integrated bypass

Marking

Height

314 mm

Width

45 mm

Depth

170 mm

Net weight

0.49 kg

Standards

EN/IEC 60947-4-2

Product certifications

UL
CCC
CSA
C-Tick

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation or dripping water conforming to EN/IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C (without derating)
40...50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage

-25...70 °C conforming to EN/IEC 60947...4-2

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Substance regulation data deliverable

Yes

If one of the deliverables is not relevant please give the reason

Brand Labelling

Life cycle assessment data

Product specific application

simple machine

Device short name

ATSU01

Network number of phases

3 phases

[us] rated supply voltage

200...480 V - 10...10 %

Motor power kw

15 kW, 3 phases at 400 V
7.5 kW, 3 phases at 230 V

Motor power hp

10 hp, 3 phases at 230 V
20 hp, 3 phases at 460 V

Icl starter rating

32 A

Utilisation category

AC-53B conforming to EN/IEC 60947-4-2

Current consumption

100 mA

Type of start

start with voltage ramp

Power dissipation in w

2.5 W at full load and at end of starting
322.5 W in transient state

Assembly style

with heat sink

Supply voltage limits

180...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Output voltage

<= power supply voltage

[uc] control circuit voltage

24 V DC +/- 10 %

Starting time

adjustable from 1 to 10 s
1 s / 50
10 s / 5
5 s / 10

Deceleration time symb

adjustable from 1 to 10 s

Starting torque

30...80 % of starting torque of motor connected directly on the line supply

Discrete input type

logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm

Discrete input voltage

24...40 V

Input output isolation

galvanic between power and control

Discrete input logic

positive LI1, LI2, BOOST at State 0: < 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA

Discrete output current

2 A DC-13
3 A AC-15

Discrete output type

open collector logic LO1 end of starting signal
relay outputs R1A, R1C NO

Discrete output voltage

24 V (voltage limits: 6...30 V) open collector logic

Minimum switching current

10 mA at 6 V DC for relay outputs

Maximum switching current

relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load
relay outputs: 2 A at 250 V AC AC-15 cos phi = 0.5 and L/R = 20 ms inductive load

Maximum switching voltage

440 V relay outputs

Display type

1 LED (green) for starter powered up
1 LED (yellow) for nominal voltage reached

Tightening torque

1.9...2.5 N.m
0.5...0.5 N.m

Electrical connection

4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit
screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit
screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit
screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

Operating position

vertical +/- 10 degree

Power range

7...11 kW at 200...240 V 3 phases
15...25 kW at 380...440 V 3 phases

Motor starter type

soft starter

Electromagnetic compatibility

conducted and radiated emissions level B conforming to CISPR 11
conducted and radiated emissions level B conforming to IEC 60947-4-2
damped oscillating waves level 3 conforming to IEC 61000-4-12
electrostatic discharge level 3 conforming to IEC 61000-4-2
EMC immunity conforming to EN 50082-1
EMC immunity level B conforming to EN 50082-2
harmonics level 3 conforming to IEC 1000-3-2
harmonics level 3 conforming to IEC 1000-3-4
immunity to electrical transients level 4 conforming to IEC 61000-4-4
immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
voltage/current impulse level 3 conforming to IEC 61000-4-5
conducted and radiated emissions level 3 conforming to IEC 61000-4-6
immunity to conducted interference caused by radio-electrical fields level 4 conforming to IEC 61000-4-11

Pollution degree

2 conforming to EN/IEC 60947-4-2

Vibration resistance

1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating
> 1000 m with current derating of 2.2 % per additional 100 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.5 cm

Package 1 width

15.2 cm

Package 1 length

17.5 cm

Package 1 weight

576.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

8.41 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Altistart 01 Soft starter for asynchronous motor

Item Number: ATSU01N232LT

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Technical Drawing

Certificates (MSDS)

eTechPub

Declaration of Conformity

ATSU01N232LT_CAD_DOC

Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

Catalog: Soft starters Altistart 01

Instruction sheet - ATSU01N2...LT

ALTISTART 01, 0.75 – 15 kW, Product End-of-Life Instructions

ATSU01N232LT_CAD_DOC

Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

Catalog: Soft starters Altistart 01

Instruction sheet - ATSU01N2...LT

ALTISTART 01, 0.75 – 15 kW, Product End-of-Life Instructions

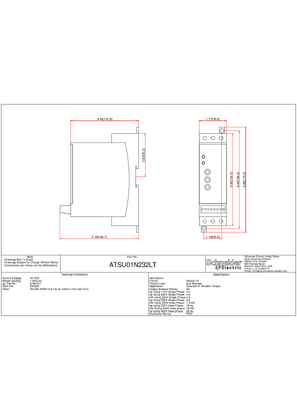

ATSU01N232LT_2D_Drwng_PDF
