Altistart 01 Soft starter for asynchronous motor ATS01, 9 A-110..480V-1.1..4 KW

Home ProductsIndustrialAltistartSoft starter for asynchronous motor

Altistart 01 Soft starter for asynchronous motor

Item Number: ATS01N109FT

Retail
N/A
RRP (Inc. GST)

Where To Buy

Datasheet

PDF datasheet

For ATS01N109FT

Download

Product Dimensions

Width icon

Width45 mm

Height icon

Height124 mm

Depth icon

Depth131 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 3389110667158 -

Specifications

Design

Range of product

Altistart 01

Product or component type

soft starter

Product destination

asynchronous motors

Warranty

18 months

Physical

[ue] rated operational voltage

  • 400 V 4 kW
  • 230 V 1.5 kW
  • 230 V 1.1 kW
  • 230 V 2 hp
  • 460 V 5 hp

Function available

integrated bypass

Marking

CE

Height

124 mm

Width

45 mm

Depth

131 mm

Net weight

0.28 kg

Standards

EN/IEC 60947-4-2

Product certifications

  • C-Tick
  • GOST
  • CSA
  • CCC
  • UL

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation or dripping water conforming to EN/IEC 60068...2-3

Ambient air temperature for operation

  • -10...40 °C (without derating)
  • 40...50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage

-25...70 °C conforming to EN/IEC 60947...4-2

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

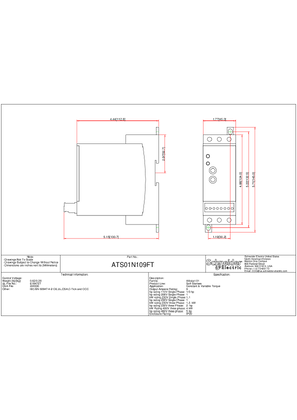

  • Technical Drawing

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Page 2  /  3
  • Page 3  /  3

Frequently Asked Questions

hide show

What are the adjustment ranges for the dials on an ATS01N1..FT?

What are the adjustment ranges for the dials on an ATS01N1..FT?

Issue :
Adjustment ranges for Schneider-Electric recommend for Altistart Soft Starters?

Product Line :
Altistart Soft Starters

Environment :
Open style Soft Starters

Cause :
Adjustment Range

Resolution :
For the START TIME dial, setpoint A is 1second and setpoint E is 5seconds.  There is a linear relationship from A to E setpoints.
For the INITIAL VOLTAGE dial, setpoint A is 30% and setpoint E is 80% of full voltage.  There is a linear relationship from A to E setpoints.
