Altistart 01 Soft starter for asynchronous motor

Item Number: ATS01N125FT

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For ATS01N125FT

Download

Product Dimensions

Width45 mm

Height124 mm

Depth131 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3389119200455	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389119200455	-

Specifications

Design

Range of product

Altistart 01

Product or component type

soft starter

Product destination

asynchronous motors

Warranty

18 months

Physical

[ue] rated operational voltage

400 V 11 kW
230 V 3 kW
230 V 4 kW
400 V 9 kW
400 V 7.5 kW
230 V 5.5 kW
230 V 2.2 kW
460 V 11 hp
230 V 5 hp
460 V 9 hp
230 V 7.5 hp

Function available

integrated bypass

Marking

Height

124 mm

Width

45 mm

Depth

131 mm

Net weight

0.35 kg

Standards

EN/IEC 60947-4-2

Product certifications

C-Tick
CCC
GOST
CSA
UL

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation or dripping water conforming to EN/IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C (without derating)
40...50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage

-25...70 °C conforming to EN/IEC 60947...4-2

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

Brand Labelling

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Package 2 bare product quantity

Product specific application

simple machine

Device short name

ATS01

Network number of phases

1 phase

[us] rated supply voltage

110...480 V - 10...10 %

Motor power kw

11 kW, 3 phases at 400 V
3 kW, 3 phases at 230 V
4 kW, 3 phases at 230 V
9 kW, 3 phases at 400 V
7.5 kW, 3 phases at 400 V
5.5 kW, 3 phases at 230 V
2.2 kW, 1 phase at 230 V

Motor power hp

11 hp, 3 phases at 460 V
2 hp, 3 phases at 210 V
3 hp, 3 phases at 210 V
5 hp, 3 phases at 230 V
9 hp, 3 phases at 460 V
7.5 hp, 3 phases at 230 V

Icl starter rating

25 A

Utilisation category

AC-53B conforming to EN/IEC 60947-4-2

Current consumption

125 A at nominal load

Type of start

start with voltage ramp

Power dissipation in w

1 W at full load and at end of starting
126 W in transient state

Assembly style

with heat sink

Supply voltage limits

99...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Output voltage

<= power supply voltage

[uc] control circuit voltage

110 V AC +/- 10 % at 35 mA
24 V AC/DC +/- 10 % at 30 mA
240 V AC +/- 10 % at 80 mA

Starting time

1 s / 100
5 s / 20
adjustable from 1 to 5 s

Starting torque

30...80 % of starting torque of motor connected directly on the line supply

Discrete output current

2 A DC-13
3 A AC-15

Tightening torque

0.5...0.5 N.m
1.9...2.5 N.m

Electrical connection

4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit
screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit
screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit
screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

Operating position

vertical +/- 10 degree

Compatibility code

ATS01N1

Power range

2.2...3 kW at 200...240 V 3 phases
2.2...3 kW at 200...240 V 1 phase
4...6 kW at 200...240 V 3 phases
7...11 kW at 200...240 V 3 phases
7...11 kW at 380...440 V 3 phases

Motor starter type

soft starter

Electromagnetic compatibility

conducted and radiated emissions level B conforming to CISPR 11
conducted and radiated emissions level B conforming to IEC 60947-4-2
damped oscillating waves level 3 conforming to IEC 61000-4-12
electrostatic discharge level 3 conforming to IEC 61000-4-2
EMC immunity level 3 conforming to EN 50082-1
EMC immunity level B conforming to EN 50082-2
harmonics level 3 conforming to IEC 1000-3-2
harmonics level 3 conforming to IEC 1000-3-4
immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6
immunity to electrical transients level 4 conforming to IEC 61000-4-4
immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
voltage/current impulse level 3 conforming to IEC 61000-4-5

Pollution degree

2 conforming to EN/IEC 60947-4-2

Vibration resistance

1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating
> 1000 m with current derating of 2.2 % per additional 100 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.200 cm

Package 1 width

15.500 cm

Package 1 length

17.500 cm

Package 1 weight

407.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.333 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Altistart 01 Soft starter for asynchronous motor

Item Number: ATS01N125FT

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Technical Drawing

Certificates (MSDS)

eTechPub

Declaration of Conformity

ATS01N125FT_CAD_DOC

Catalog: Soft starters Altistart 01

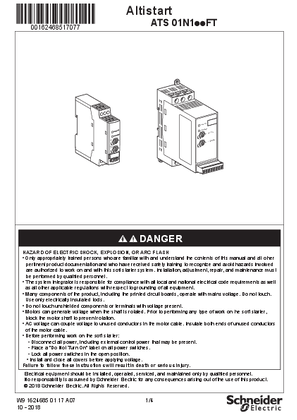

Instruction Sheet - ATS01N1...FT

ALTISTART 01, 0.75 – 15 kW, Product End-of-Life Instructions

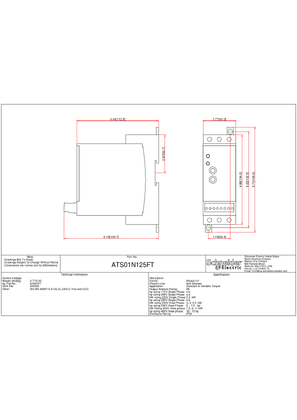

ATS01N125FT_2D_Drwng_PDF

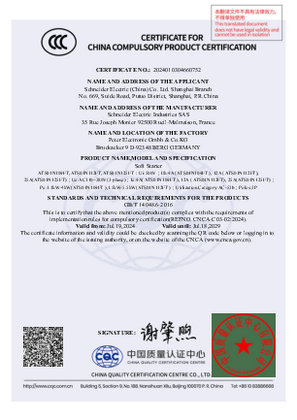

ATS01N109-125FT CCC Certificate
