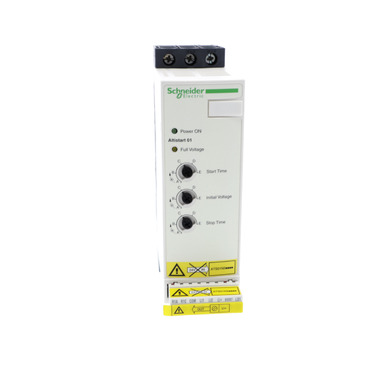

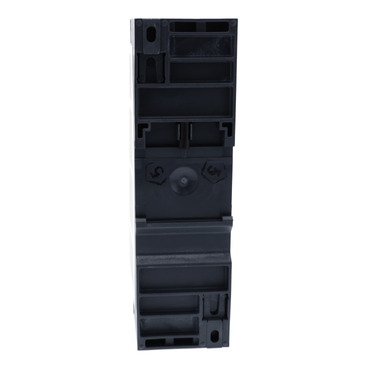

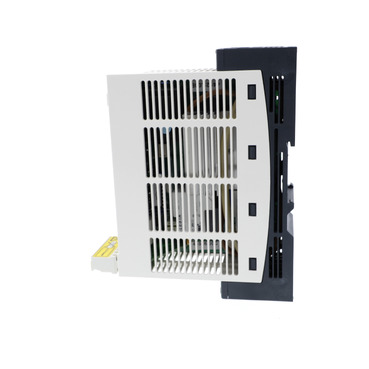

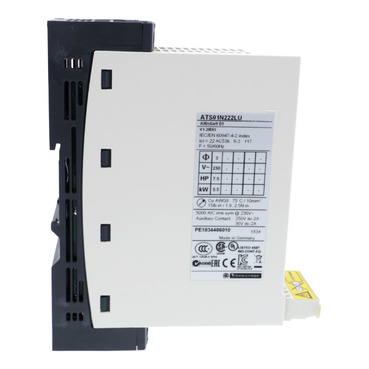

Altistart 01, Soft starter for asynchronous motor, ATS01, 22 A-380..415V-7.5..11 KW

Home ProductsIndustrialAltistartSoft starter for asynchronous motor

Altistart 01, Soft starter for asynchronous motor, ATS01, 22 A-380..415V-7.5..11 KW

Item Number: ATS01N222QN

Where To Buy

Datasheet

PDF datasheet

Download

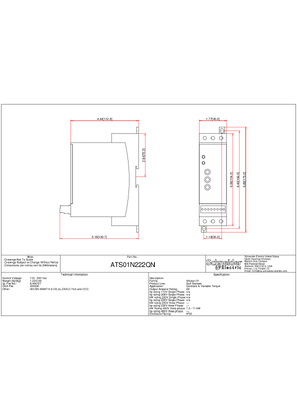

Product Dimensions

Width icon

Width45 mm

Height icon

Height154 mm

Depth icon

Depth131 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altistart 01

Product or component type

soft starter

Product destination

asynchronous motors

Warranty

18 months

Physical

Function available

integrated bypass

Marking

CE

Height

154 mm

Width

45 mm

Depth

131 mm

Net weight

0.56 kg

Standards

EN/IEC 60947-4-2

Product certifications

CSA|UL|CCC|C-Tick|GOST

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation or dripping water conforming to EN/IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C (without derating)|40...50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage

-25...70 °C conforming to EN/IEC 60947...4-2

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand Labelling

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Product specific application

simple machine

Device short name

ATS01

Network number of phases

3 phases

[us] rated supply voltage

380...415 V - 10...10 %

Motor power kw

11 kW, 3 phases at 380...415 V|7.5 kW, 3 phases at 380...415 V

Icl starter rating

22 A

Utilisation category

AC-53B conforming to EN/IEC 60947-4-2

Current consumption

110 A at nominal load

Type of start

start with voltage ramp

Power dissipation in w

124.5 W in transient state|4.5 W at full load and at end of starting

Assembly style

with heat sink

Supply voltage limits

342...456 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Output voltage

<= power supply voltage

[uc] control circuit voltage

built into the starter

Starting time

1 s / 100 |5 s / 20 |10 s / 10 |adjustable from 1 to 10 s

Deceleration time symb

adjustable from 1 to 10 s

Starting torque

30...80 % of starting torque of motor connected directly on the line supply

Discrete input type

logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm

Discrete input voltage

24...40 V

Discrete input logic

positive LI1, LI2, BOOST at State 0: < 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA

Discrete output current

2 A DC-13|3 A AC-15

Discrete output type

open collector logic LO1 end of starting signal|relay outputs R1A, R1C NO

Discrete output voltage

24 V (voltage limits: 6...30 V) open collector logic

Minimum switching current

10 mA at 6 V DC for relay outputs

Maximum switching current

relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load|relay outputs: 2 A at 30 kV DC cos phi = 0.5 and L/R = 20 ms inductive load

Display type

1 LED (green) for starter powered up|1 LED (yellow) for nominal voltage reached

Tightening torque

0.5...0.5 N.m|1.9...2.5 N.m

Electrical connection

4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit|screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit|4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit|screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit|screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit|4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit|screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit|4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit|4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit|screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

Operating position

vertical +/- 10 degree

Compatibility code

ATS01N2

Power range

7...11 kW at 380...440 V 3 phases

Motor starter type

soft starter

Electromagnetic compatibility

conducted and radiated emissions level B conforming to CISPR 11|conducted and radiated emissions level B conforming to IEC 60947-4-2|damped oscillating waves level 3 conforming to IEC 61000-4-12|electrostatic discharge level 3 conforming to IEC 61000-4-2|EMC immunity level 3 conforming to EN 50082-1|EMC immunity level B conforming to EN 50082-2|harmonics level 3 conforming to IEC 1000-3-2|harmonics level 3 conforming to IEC 1000-3-4|immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6|immunity to electrical transients level 4 conforming to IEC 61000-4-4|immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3|micro-cuts and voltage fluctuation conforming to IEC 61000-4-11|voltage/current impulse level 3 conforming to IEC 61000-4-5

Pollution degree

2 conforming to EN/IEC 60947-4-2

Vibration resistance

1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6|1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating|> 1000 m with current derating of 2.2 % per additional 100 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.7 cm

Package 1 width

15.1 cm

Package 1 length

17.2 cm

Package 1 weight

672 g

Unit type of package 2

S03

Number of units in package 2

14

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

9.952 kg

Unit type of package 3

P06

Number of units in package 3

112

Package 3 height

77 cm

Package 3 width

80 cm

Package 3 length

60 cm

Package 3 weight

88.34 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • eTechPub

ATS01N222QN_CAD_DOC
ZIP

ATS01N222QN_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 266.7 KB
Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V
ZIP

Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V

VERSION

1.0

DATE

04 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.3 MB
Catalog: Soft starters Altistart 01
ZIP

Catalog: Soft starters Altistart 01

VERSION

2.0

DATE

02 Aug 2022

REVISION

2.0

DOWNLOAD (ZIP) 1.9 MB
Instruction sheet - ATS01N2..LU/QN/RT
ZIP

Instruction sheet - ATS01N2..LU/QN/RT

VERSION

5.0

DATE

29 Sep 2023

REVISION

5.0

DOWNLOAD (ZIP) 218.6 KB
ALTISTART 01, 0.75 – 15 kW, Product End-of-Life Instructions
ZIP

ALTISTART 01, 0.75 – 15 kW, Product End-of-Life Instructions

VERSION

1.0

DATE

12 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 269 KB
ATS01N222QN_2D_Drwng_PDF
ZIP

ATS01N222QN_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 13.7 KB
Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V
ZIP

Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V

VERSION

1.0

DATE

18 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 894 KB
Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V
ZIP

Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V

VERSION

1.0

DATE

18 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V
ZIP

Soft start/soft stop unit Power : 4 to 15 kW - U 3-phase = 200 to 240 V or 380 to 415 V or 440 to 430 V

VERSION

1.0

DATE

18 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 1017.7 KB
ATS01 UL Certificate
ZIP

ATS01 UL Certificate

VERSION

1.0

DATE

03 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 803.8 KB
ATS01 CSA Certificate of Compliance
ZIP

ATS01 CSA Certificate of Compliance

VERSION

1.1

DATE

08 Sep 2023

REVISION

1.1

DOWNLOAD (ZIP) 179.8 KB
ATS01_UK_DECLARATION
ZIP

ATS01_UK_DECLARATION

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 312.5 KB
ATSU01-ATS01_CCC_SDOC_PE
ZIP

ATSU01-ATS01_CCC_SDOC_PE

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 6.7 MB
ATS01 EU DECLARATION
ZIP

ATS01 EU DECLARATION

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 312.3 KB
ATS01 C-TICK certificate of conformity
ZIP

ATS01 C-TICK certificate of conformity

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 179.8 KB
Altistart 22 (EPDS)
ZIP

Altistart 22 (EPDS)

VERSION

2.1

DATE

24 Jan 2022

REVISION

2.1

DOWNLOAD (ZIP) 150.8 KB

Frequently Asked Questions

hide show

How can ATS01N2...LU, QN, RT be started without external control wires?

Issue:
Start ATS01N2...LU, QN, RT without control wires.

Product Line:
Altistart 01 Soft Starters with "LU", "QN", or "RT" at the end of the part number

Environment:
All

Cause:
Need to start the Soft Starter with power up

Resolution:
Add a jumper between terminals LI+ and LI2.  This provides a continuous RUN command.  When power is supplied to the ATS01, it will immediately begin to start the motor.  Removing power will result in a freewheel stop.
