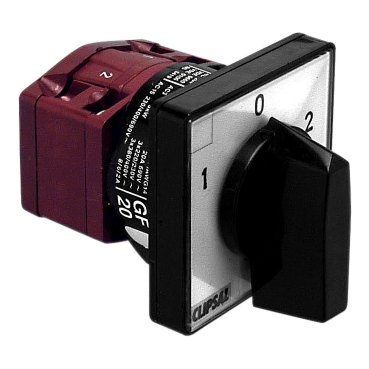

7 Series Cam Switches, Changeover Switch with Off Marked 1-O-2, 1 Pole

Home ProductsIndustrial7 SeriesChangeover Switch with Off Marked 1-O-2

7 Series Cam Switches, Changeover Switch with Off Marked 1-O-2, 1 Pole

Item Number: 7GF20/51/U

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 7

Physical

Switch function

3-way

Connector type

screw terminals

Number of poles

1

Ip degree of protection

IP20

Eu rohs directive

Under investigation

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Electrical circuit type

changeover contactor

Mounting holes diameter

12 mm

[us] rated supply voltage

415 V DC

Number of contacts

3

[ui] rated insulation voltage

480 V AC

[ith] conventional free air thermal current

20 A

Rated operational power in w

7.5 kW

Switching angle

60 °

Fuse type

5-5 kA, gG|5-5 kA, gL

Maximum short-circuit current

20 A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.5 cm

Package 1 width

4.3 cm

Package 1 length

9.8 cm

Package 1 weight

0.018 kg
Show all specifications
