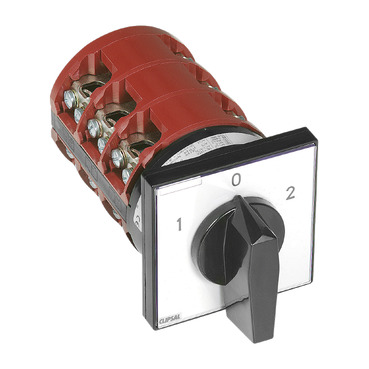

7 Series Cam Switches, Changeover Switch, 3 Pole, with Off Marked 1-O-2
Item Number: 7GN125/53/U
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Series 7
Physical
Switch function
3-way
Connector type
screw terminals
Number of poles
3
Eu rohs directive
Under investigation
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Mounting holes diameter
16 mm
[us] rated supply voltage
415 V DC
[ith] conventional free air thermal current
125 A
Rated operational power in w
45 kW
Switching angle
60 °
Fuse type
10-10 kA, gG|10-10 kA, gL
Maximum short-circuit current
125 A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1.04 kg
