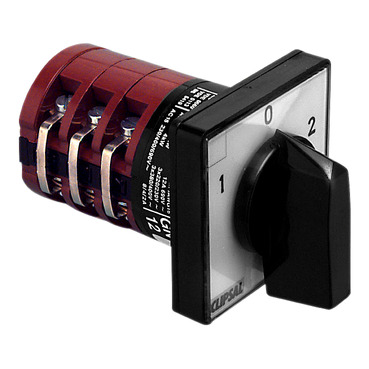

7 Series Cam Switches, Changeover Switch, 3 Pole, 12A, with Off Marked 1-O-2
Item Number: 7GN12/53/U
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Series 7
Physical
Switch function
3-way
Connector type
screw terminals
Number of poles
3
Eu rohs directive
Under investigation
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Electrical circuit type
changeover contactor
Mounting holes diameter
12 mm
[us] rated supply voltage
415 V DC
Number of contacts
3
[ui] rated insulation voltage
480 V AC
[ith] conventional free air thermal current
12 A
Rated operational power in w
6 kW
Switching angle
60 °
Fuse type
3-3 kA, gG|3-3 kA, gL
Maximum short-circuit current
16 A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
1 kg
