Clipsal - 56 Series, Switched Socket Outlet 250V, 15A, 3 Flat PIN, IP66, Surface Mount, Earth Leakage Grey
Item Number: 56C315/4EL-GY
Specifications
Design
Range of product
Series 56
Product brand
Clipsal
Product or component type
socket-outlet with residual current device
Device application
power supply
Physical
Number of poles
3
Number of power socket outlets
1 protective cover
[in] rated current
15 A
[ue] rated operational voltage
250 V AC
Device mounting
surface
Depth
100 mm
Width
101 mm
Height
204 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PVC (polyvinyl chloride): housing
Others
Package 1 bare product quantity
1
Earth-leakage protection class
class A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11.3 cm
Package 1 width
10.5 cm
Package 1 length
30.0 cm
Package 1 weight
1413.0 g
Unit type of package 2
CAR
Number of units in package 2
8
Package 2 height
30.5 cm
Package 2 width
29.6 cm
Package 2 length
43.6 cm
Package 2 weight
12.0 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-

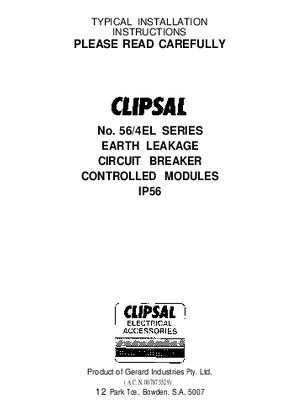

Installation Instruction
-
