Specifications
Design
Range of product
Series 56
Range
Clipsal - 56 Series
Product brand
Clipsal
Product or component type
socket-outlet
Device application
power supply
Market segment
utility|small commercial|industry
Physical
Number of poles
4
Number of power socket outlets
1 protective cover
[in] rated current
40 A
[ue] rated operational voltage
500 V AC 50 Hz
Protection type
without protection
Device mounting
surface
Connections - terminals
screw terminals cable(s) 10-25 mm²
Depth
108 mm
Width
101 mm
Height
204 mm
Standards
AS/NZS 3133|AS/NZS 3123
Ambient air temperature for operation
-25...75 °C
Ip degree of protection
IP66 conforming to AS 60529
Material
Material
polycarbonate: cover
Contacts material
pins: phosphor bronze
Others
Package 1 bare product quantity
1
Plug, socket category
low voltage
Outlet standard deviation
Australian/New Zealand
Plug, socket, control station shape
straight
Poles description
3P + E
Electrical connection
industrial connector
Targeted country
Australia
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.8 cm
Package 1 width
10.1 cm
Package 1 length
20.4 cm
Package 1 weight
0.144 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-

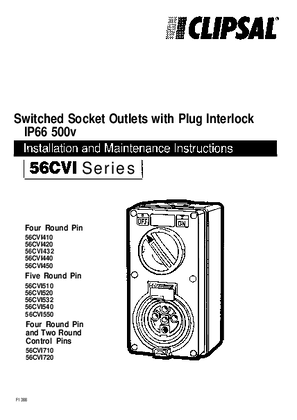

Installation Instruction
-
