Clipsal - 56 Series, Surface Socket, IP66, 500V 20A - 4 Round Pins

Home ProductsIndustrial56 SeriesSurface Socket

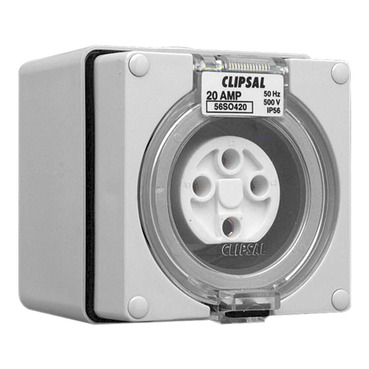

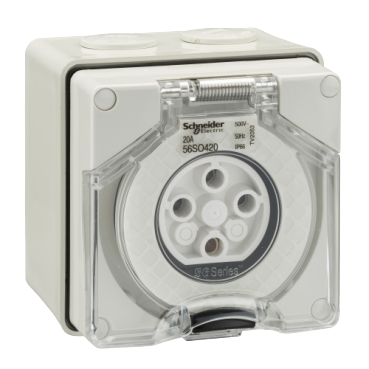

Clipsal - 56 Series, Surface Socket, IP66, 500V 20A - 4 Round Pins Chemical Grey

Item Number: 56SO420-CG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth102 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

utility|small commercial|industry

Physical

Device mounting

surface

Mounting mode

external mounting

[in] rated current

20 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Connections - terminals

screw terminals 2.5-6 mm² rigid or stranded cable

Socket number

1

Outlet standard

industrial

Net weight

0.7 kg

Depth

102 mm

Width

101 mm

Height

107 mm

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3112

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

ABS (acrylonitrile butadiene-styrene): cover

Contacts material

screws: brass

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Plug, socket category

low voltage

Poles description

3P + E

Voltage colour

black

Duration

7 h

Tightening torque

0.8 N.m

Socket-outlet type

L

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.2 cm

Package 1 width

10.1 cm

Package 1 length

10.7 cm

Package 1 weight

0.7 kg
Show all specifications
