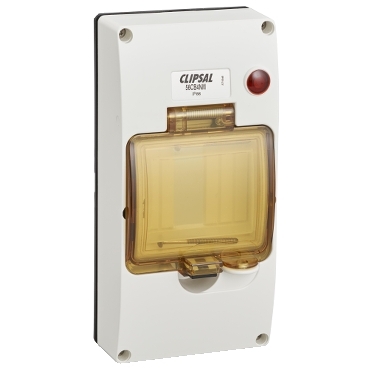

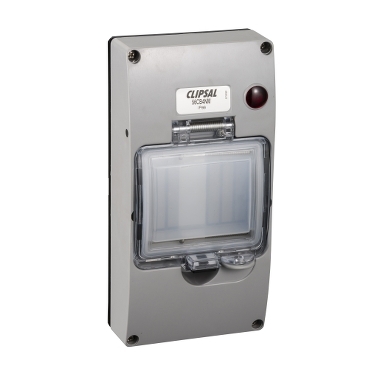

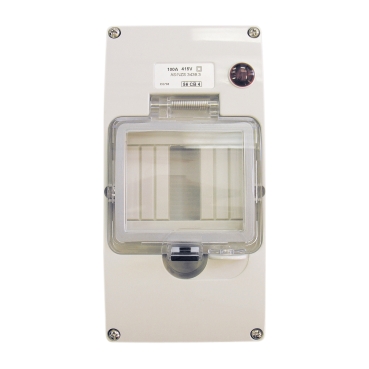

Clipsal - 56 Series, Mounting Cover Kit, 4 Module, with 240/415V Neon, Protective Membrane

Home ProductsIndustrial56 SeriesMounting Cover Kit

Clipsal - 56 Series, Mounting Cover Kit, 4 Module, with 240/415V Neon, Protective Membrane Grey

Item Number: 56CB4NM-GY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95 mm

Height icon

Height190 mm

Depth icon

Depth50 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

DIN cover

Colour

grey (RAL 7035)

Physical

Device mounting

surface

Mounting mode

wall-mounted

Width

95 mm

Height

190 mm

Depth

50 mm

Net weight

0.32 kg

Standards

AS 3100

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC + PET: housing

Others

Package 1 bare product quantity

1

Compatibility code

56 Series covers

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.5 cm

Package 1 width

10.0 cm

Package 1 length

20.0 cm

Package 1 weight

322.0 g

Unit type of package 2

CAR

Number of units in package 2

14

Package 2 height

39.5 cm

Package 2 width

10.2 cm

Package 2 length

31.0 cm

Package 2 weight

4.508 kg
