Clipsal - 56 Series, Mounting Cover Kit, 4 Module, Less Neon Grey
Item Number: 56CB4-GY
Specifications
Design
Range
Clipsal - 56 Series
Range of product
Series 56
Product brand
Clipsal
Product or component type
DIN cover
Colour
grey (RAL 7035)
Physical
Device mounting
surface
Mounting mode
wall-mounted
Width
95 mm
Height
190 mm
Depth
50 mm
Net weight
0.34 kg
Standards
AS 3100
Ip degree of protection
IP66 conforming to AS 60529
Ambient air temperature for operation
-25...75 °C
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Compliant
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
polycarbonate: housing
Others
Package 1 bare product quantity
1
Compatibility code
56 Series covers
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.3 cm
Package 1 width
9.9 cm
Package 1 length
20.0 cm
Package 1 weight
292.0 g
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
Specification Guide
-

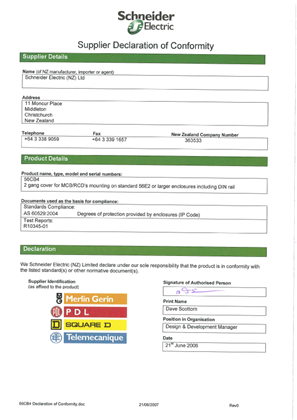

Declaration of Conformity
