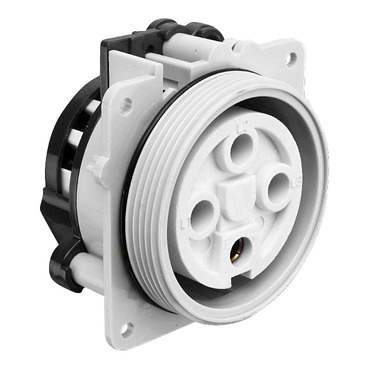

Clipsal - 56 Series, Internal Socket Housings, 500V, 32A, 4 Round Pin

Home ProductsIndustrial56 SeriesInternal Socket Housings

Clipsal - 56 Series, Internal Socket Housings, 500V, 32A, 4 Round Pin

Item Number: 56SO432G

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

industry|utility|small commercial

Physical

Device mounting

surface

Mounting mode

external mounting

[in] rated current

32 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Connections - terminals

screw terminals 4-16 mm² rigid or stranded cable

Socket number

1

Outlet standard

industrial

Net weight

0.25 kg

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3112

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Contacts material

screws: brass

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Plug, socket category

low voltage

Poles description

3P + E

Voltage colour

black

Duration

7 h

Tightening torque

0.8 N.m

Socket-outlet type

N

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.4 cm

Package 1 width

10 cm

Package 1 length

10 cm

Package 1 weight

0.188 kg
