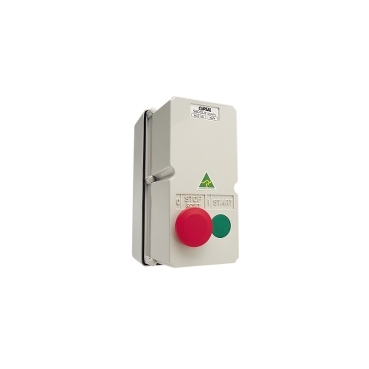

Clipsal - 56 Series, DOL Motor Starter, 4kW, 415V, 2 Push Button

Home ProductsIndustrial56 SeriesDOL Motor Starter

Clipsal - 56 Series, DOL Motor Starter, 4kW, 415V, 2 Push Button Resistant Orange

Item Number: 56DOL9/1-RO

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Product or component type

switch

Colour

cover: grey

Product destination

2 push-button

Market segment

utility|industry|small commercial

Physical

Control type

push-button

[ie] rated operational current

9 A

Connections - terminals

screw terminal solid|screw terminal stranded

Height

204 mm

Width

101 mm

Net weight

1.387 kg

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3100|AS/NZS 3133

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Motor starter type

direct on line

[us] rated supply voltage

240 V AC 50 Hz

Network type

AC

Rated operational power in w

4 kW at 240 V (AC-3)

Overload current

0.63...1 A

Tightening torque

0.8 N.m

Network number of phases

3 phases

Targeted country

Australia

Suitability for isolation

no

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

1.387 kg
Show all specifications
