Datasheet

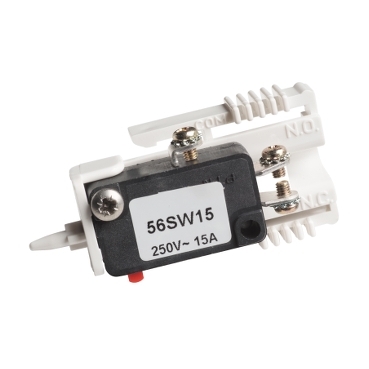

For 56SWAUX15
Close
Specifications
Design
Range of product
Series 56
Range
Clipsal - 56 Series
Product brand
Clipsal
Product or component type
auxiliary switch
Device application
control
Market segment
- small commercial
- industry
- utility
Physical
Device presentation
basic element
Device mounting
surface
Local signalling
without
[ue] rated operational voltage
250 V
Rated current
15 A
Net weight
0.016 kg
Ambient air temperature for operation
-25...75 °C
Standards
AS/NZS 3133
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121020EN
Circularity profile
N/A
Documents & downloads
hide showFilter items
-
All
-
CAD Files and Packs
-
Environmental Disclosure
-
Installation Instruction
ZIP
Revit Pack 56 Series
VERSION
1.0
DATE
11 Aug 2023
REVISION
1.0
DOWNLOAD (ZIP) 2.8 MB
ZIP
PLUG TOP IP66 STR 5PIN 32A 500 - Product Environmental Profile
VERSION
1.0
DATE
30 Apr 2024
REVISION
1.0
DOWNLOAD (ZIP) 406.6 KB
ZIP
Installation Instructions - F2430/01 56SWAUX15 56 Series Auxillary Switch, 26743
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 555.5 KB
