Medilec, RCD Relay, 240V, 10mA / 10Ms with Mounting Bracket

Item Number: E03/10/10

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width27 mm

Height icon

Height141 mm

Depth icon

Depth72 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series E03

Product or component type

residual current protection relay

Product brand

Clipsal

Physical

[in] rated current

100 A at 40 °C

[ue] rated operational voltage

220/230/240 V AC 50 Hz conforming to AS/NZS 3190

Control type

manual tripping test

Protection type

MCB

Local signalling

1 neon

Mounting support

bracket

Height

141 mm

Width

27 mm

Depth

72 mm

Net weight

0.23 kg

Standards

AS/NZS 3190

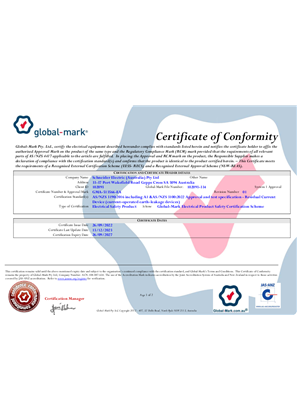

Product certifications

RCM conforming to AS/NZS 3190

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Network type

AC

Earth-leakage sensitivity

10 mA conforming to AS/NZS 3190

Earth-leakage protection time delay

40 ms

Earth-leakage protection class

type I

Network frequency

50 Hz

Residual current tripping technology

electromechanical

[ui] rated insulation voltage

500 V DC conforming to AS/NZS 3190

[uimp] rated impulse withstand voltage

6 kV conforming to AS/NZS 3190

Surge current

25 A

9 mm pitches

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.7 cm

Package 1 width

11.2 cm

Package 1 length

15.7 cm

Package 1 weight

307.0 g
