Medilec Flush Mount Metal Plate Wall Boxes, 3 Gang, Fascia

Home ProductsHealth SolutionsMedilecFlush Mount Metal Plate

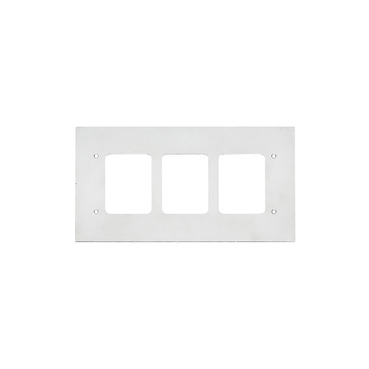

Medilec Flush Mount Metal Plate

Item Number: ML2164/3F

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Datasheet

For ML2164/3F

Barcode

Qty	UoM	EAN	Colour
1		9311554674649	-
10		19311554674646	-
			-

Barcode

Qty	UoM	EAN	Colour
1		9311554674649	-
10		19311554674646	-

Specifications

Design

Range of product

Series ML2164
Medilec

Product brand

Clipsal

Surface finish

satin

Physical

Mounting position

horizontal and vertical

Type of installation

indoor

Width

136 mm

Height

150 mm

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

stainless steel

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.1 cm

Package 1 width

5 cm

Package 1 length

28 cm

Package 1 weight

323 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

c6f2fabe-d5ba-4588-bd03-c90f7def1381

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Minimum percentage of recycled plastic content

0

Show all specifications
