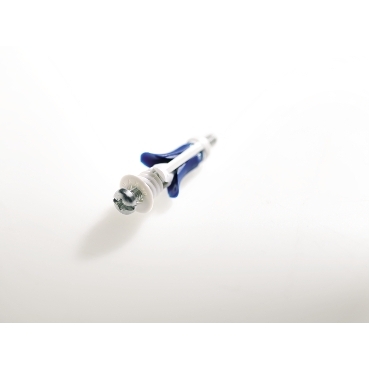

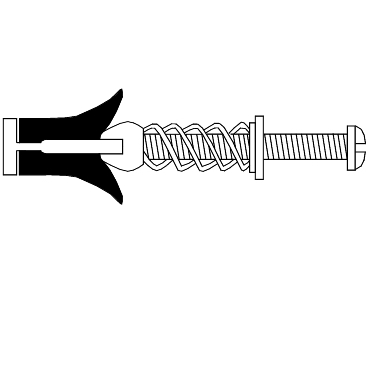

Thorsman, Cavity Fixing, TSP-10xM5, with screw, set of 25

Home ProductsElectrical AccessoriesThorsmanCavity Fixing

Thorsman, Cavity Fixing, TSP-10xM5, with screw, set of 25

Item Number: 1249002

Where To Buy

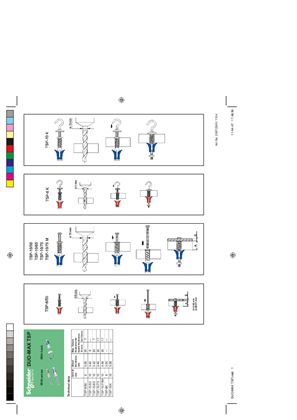

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Device application

3-40 mm board material

Colour tint

blue/white

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Provided equipment

screw

Mounting support

board material - thickness: 3-40 mm

Mounting support

wall mounted

Quantity per set

set of 25

Net weight

0.00196 kg

Environmental characteristic

corrosion resistance

Ambient air temperature for operation

-40...80 °C

Length

77 mm

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP101028EN

Circularity profile

N/A

Material

Material

screw: steel electroplated|collar: PA (polyamide)|spring: PA (polyamide)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessories

Package 1 bare product quantity

1

Package 2 bare product quantity

25

Package 3 bare product quantity

42750

Device short name

TSP

Thread type

M5

Screw diameter

5 mm

Screw length

75 mm

Drilling diameter

10 mm

Practical load capacity

shear: 250 N for 13 mm board 4.5 )|pull-out load: 75 N for 13 mm board 6 )|shear: 400 N for 2 x 13 mm board 4.5 )|pull-out load: 150 N for 2 x 13 mm board 6 )

Thickness

0...37 mm fixture 13 mm board|0...24 mm fixture 2 x 13 mm board

Diameter

20 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.000 cm

Package 1 width

1.000 cm

Package 1 length

8.000 cm

Package 1 weight

12.000 g

Unit type of package 2

BB1

Number of units in package 2

25

Package 2 height

5.800 cm

Package 2 width

7.800 cm

Package 2 length

12.000 cm

Package 2 weight

338.000 g

Unit type of package 3

P12

Number of units in package 3

42750

Package 3 height

100.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

556.293 kg
