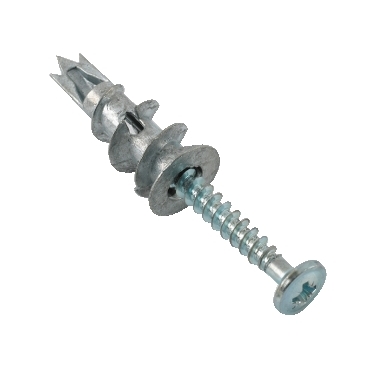

Thorsman Cavity Fixing

Item Number: 1220104

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For 1220104

Download

Barcode

Qty	EAN	Colour
1	7315880114291	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		7315880114291	-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Device application

board material

Colour tint

metal

Warranty

18 months

Physical

Provided equipment

screw

Mounting support

board material

Mounting support

wall mounted

Quantity per set

set of 100

Sale per indivisible quantity

100

Ambient air temperature for operation

-40...80 °C

Length

35 mm

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Circularity profile

N/A

Material

Material

cavity fixing: zinc electroplated
screw: steel

Others

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

Accessories

Package 1 bare product quantity

Packaging made with recycled cardboard

Packaging without single use plastic

Product name

Thorsman TPD

Device short name

TPD

Screw diameter

4.5 mm

Screw length

35 mm

Size of screw head

8 mm

Shape of screw head

cross slotted

Practical load capacity

shear: 270 N
pull-out load: 80 N

Thickness

0...12 mm fixture

Diameter

4.5 mm

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

1.4 cm

Package 1 width

1.4 cm

Package 1 length

5.5 cm

Package 1 weight

6 g

Unit type of package 2

BB1

Number of units in package 2

100

Package 2 height

5.8 cm

Package 2 width

12.3 cm

Package 2 length

16 cm

Package 2 weight

676 g

Unit type of package 3

CAR

Number of units in package 3

2400

Package 3 height

25.4 cm

Package 3 width

18.3 cm

Package 3 length

76.5 cm

Package 3 weight

16.71 kg

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Show all specifications
