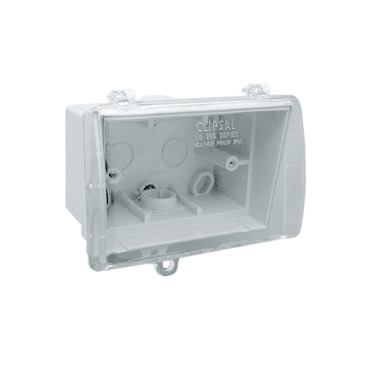

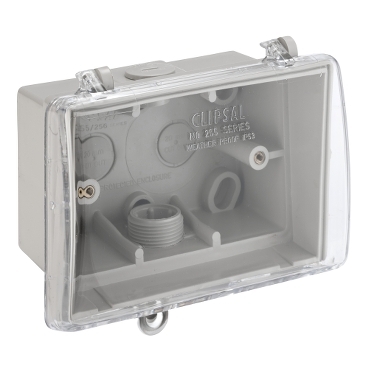

Clipsal - Mounting Accessories Weather Protective Box Grey
Item Number: 255-GY
Retail
N/A
RRP (Inc. GST)
Datasheet
For 255-GY
Close
Specifications
Design
Product brand
Clipsal
Physical
Device mounting
surface
Length
137 mm
Width
110 mm
Depth
77 mm
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs exemption information
Yes
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride)
