EVlink Pro DC from 120kW Fast charging station 120kW, CCS2 + CCS2 connectors, 7.5m cable without cable management system

Item Number: EVD1S120TBBC7-AN

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width833 mm

Height2103 mm

Depth963 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606487211204	-

Specifications

Design

Range

EVlink

Product or component type

fast charging station

Device application

Electrical Vehicle charger

Colour

front face: signal white (RAL 9003)|body: black (Pantone black C)

Sustainable offer status

Green Premium product

Physical

Type of installation

indoor/outdoor

Range compatibility

EVlink Field Services|EVlink EVlink Load Management System

Connector type

SAE CCS Combo 2

Provided equipment

1 meter display per output

Protection type

short-circuit protection on output|overload protection|ground fault protection|residual current breaker with overcurrent protection (RCBO)|temperature rise protection

Ambient air temperature for operation

-30...50 °C (with derating above 50 °C)

Height

2103 mm

Width

833 mm

Depth

963 mm

Net weight

451 kg (without power module)|511 kg (with power module)

Communication port protocol

OCPP 1.6

Communication network type

4G|WLAN|TCP/IP|Wi-Fi

Type of setting

without

Ip degree of protection

IP55

Ik degree of protection

IK10|screen: IK08

Ambient air temperature for storage

-40...70 °C

Relative humidity

5...95 %, without condensation

Standards

IEC 61851-1:ed. 3|IEC 61851-23:ed. 1|IEC 62196-1|IEC 62196-3|EN/IEC 61000-6-2:2005|EN/IEC 61000-6-4:class A|ISO 15118|DIN 70121

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2404028_V1

Circularity profile

ENVEOLI2404028_V1

Material

Material

enclosure: stainless steel 304

Others

Commercial status history

SESA211158 | Mon May 06 03:27:00 EDT 2024 | From Import Local | From 04 to 08

Package 1 bare product quantity

Product name

EVlink Pro DC

Poles description

3P + N + E

Mounting location

floor stand

Earthing system

TN-S|TN-C-S|TT|compatible IT with additional isolation transformer on the power supply

[us] rated supply voltage

380...415 V AC at 50...60 Hz, 3 phases + neutral

Input current

193...214 A

Nominal output power

SAE CCS Combo 2: 120 kW at 1.5-300 A, 150...1000 V, DC

Output type

2 charging cable of 7.5 m

Number of outputs

Accuracy class

class 1

Absolute accuracy error

1 % of full scale

Access control system

badge RFID conforming to ISO/IEC 14443 A and B|badge NFC

Display type

LCD touch screen : 10 inch

User language

Control button type

charge interruption button

Efficiency

94.5 %

Power factor

0.99

Services

commercial service plan|commissionning service|warranty extensionup to 5 years|repair service

Ethernet service

web browser

Electromagnetic compatibility

immunity for industrial environments: |emission standard for industrial environments:

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

243.8 cm

Package 1 width

117.4 cm

Package 1 length

126 cm

Package 1 weight

634 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

EVlink Pro DC from 120kW Fast charging station 120kW, CCS2 + CCS2 connectors, 7.5m cable without cable management system

Item Number: EVD1S120TBBC7-AN

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Other technical guide

End of Life Manual

Environmental Disclosure

Installation Instruction

System User Guide

Technical Drawing

Technical illustration

Application Notes

Certificates (MSDS)

Firmware

EVlink Pro DC 120 to 180kW - 3D CAD Simplified

EVlink Pro DC 120 to 180kW - 2D Drawings

Brochure - EVlink Pro DC 120, 150, or 180 kW

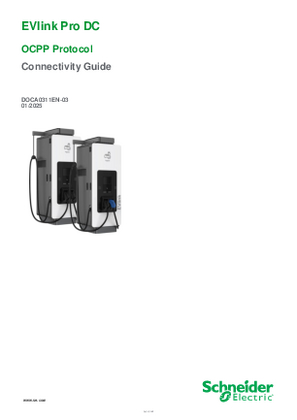

EVlink Pro DC, OCPP Protocol Connectivity Guide

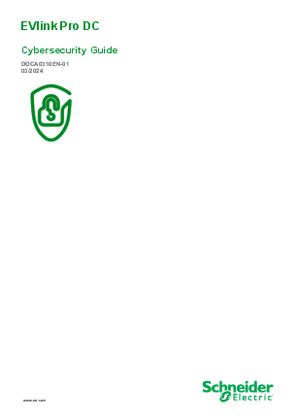

EVlink Pro DC, Cybersecurity Guide
