EVlink Pro AC Socket Outlet
Item Number: EVP1SSS43

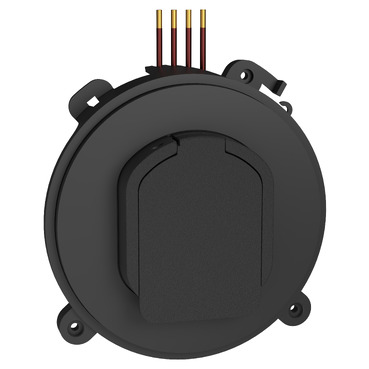

This EVlink Pro AC spare part is a T2 socket-outlet with shutter (T2S). It is used in three-phase. It is made of plastic. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C. The dimensions are (W) 195mm x (H)235.5mm x (D) 110mm. The Us supply voltage is between 380VAC and 415VAC with a maximum supply current of 32A.
Datasheet
For EVP1SSS43
Product Dimensions
Width194.92 mm
Height234.45 mm
Depth110 mm
Specifications
Design
Range
Product or component type
Physical
Range compatibility
- EVlink EVlink Pro AC EVB3 charging station
- EVlink EVlink Pro AC Metal
Height
Width
Depth
Ip degree of protection
Ik degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Material
Material
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
End of Life Manual
-
Environmental Disclosure
-
Application Notes
CAD - 3PH socket outlet T2S EVlink Pro AC
VERSION
2.0
DATE
17 Sep 2024
REVISION
2.0
eMobility Solutions - Catalog 2025
VERSION
5.0
DATE
07 Feb 2025
REVISION
5.0

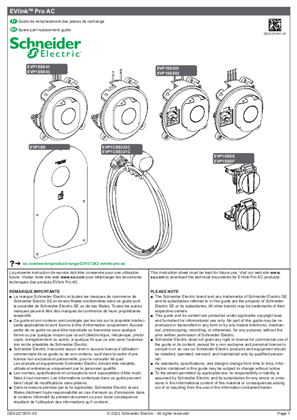

EVlink Pro AC - Spare Part Replacement Guide
