Datasheet

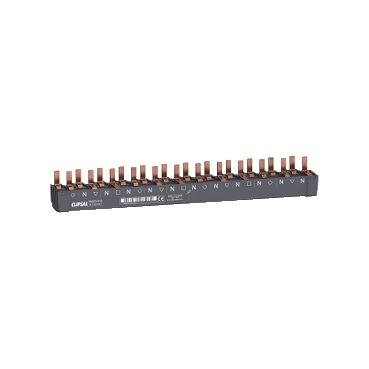

For RMXPH312
Features
- Helps increase installation speed by up to 10 times, reduce wiring effort and lessen chances of hotspots caused by loose cable connections
- Makes wiring easy and installations time efficient
- SLIM Comb busbar is optimised for the SLIM RCBO
- Connectors can accept up to 35 mm² rigid cable
- Available in 5, 12 and 24 module options for single phase installations
- Also available for 3 phase installations in 12 and 24 module options
Specifications
Design
Product brand
Range
Product or component type
Physical
Device presentation
[ie] rated operational current
[ue] rated operational voltage
- 230 V AC Ph/N
- 400 V AC Ph/Ph
Mounting mode
Width
Standards
- IEC 61439-1
- IEC 60947-7-1
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
Environmental Disclosure
-
Specification Guide
Resi Max 3 P+N Comb busbar 12 modules for Slim RCBO - 3D CAD
VERSION
1.0
DATE
23 Apr 2024
REVISION
1.0
Clipsal Resi MAX Circuit Protection - The complete residential solution, 124301
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Resi MAX circuit protection, 141178
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Circuit Protection Resi MAX™ Solutions for Everyday Residential Needs
VERSION
2.0
DATE
21 Mar 2023
REVISION
2.0
MAX9 COMB BUSBAR WITH ACCESSORIES
VERSION
1.0
DATE
25 Jul 2024
REVISION
1.0
Technical Specifications - Enclosures and Chassis
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Circuit Protection for Australian Homes
Resi MAX is a very simple range to cover essential circuit protection needs for Australian homes. Resi MAX range helps to provide optimised solution for single phase applications with carefully chosen range of plastic enclosures, surge protection, miniature circuit breakers, isolator switch, RCDs and RCBOs.
Slim Comb busbars and accessories are also available to simplify the installation with SLIM RCBOs and help to improve installation speed by up to 10 times. Plastic enclosures in this range are optimised to provide the best balance of aesthetics, wiring space and value for money.
Products in this range are must haves for each electrician’s van as it helps to optimise installation costs without compromising on quality or performance. All Resi MAX devices provide full flexibility to the installer with the option of feeding them either from top or bottom side. All products comply to relevant Australian standards for complete peace of mind.
