Clipsal Resi MAX Meter box
Item Number: 230DRAT2
Contact your Wholesaler for pricing

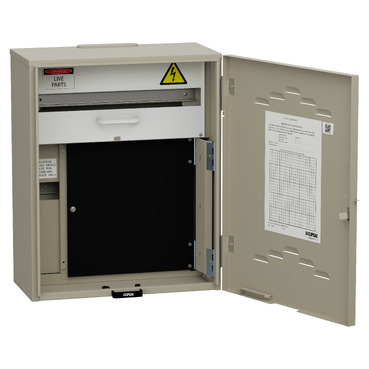

This Resi MAX product is a surface or semi flush mounted meter box with a plain door. It is a ventilated door with door retainer. It contains 24 modules of 18mm. The dimensions are (W) 470mm x (H) 680mm x (D) 280mm.
Specifications
Design
Range
Resi MAX
Product or component type
meter box
Device application
- distribution
- metering
Physical
Provided equipment
- enclosure
- DIN rail
- earth and neutral grid assembly
- removable meter panel
- meter isolator
- fascia plate
Function available
clips lead retainer
Cable entry
knock-out top and bottom
Width
485 mm
Height
680 mm
Depth
256 mm
Ip degree of protection
IP23
Standards
AS/NZS 3000
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP2206023EN
Circularity profile
N/A
Material
Material
iron (galvanised)
Documents & downloads
hide showFilter items
-
All
-
Environmental Disclosure
-

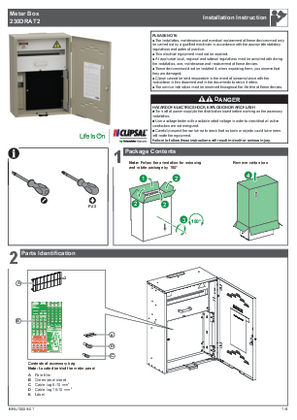

Installation Instruction
